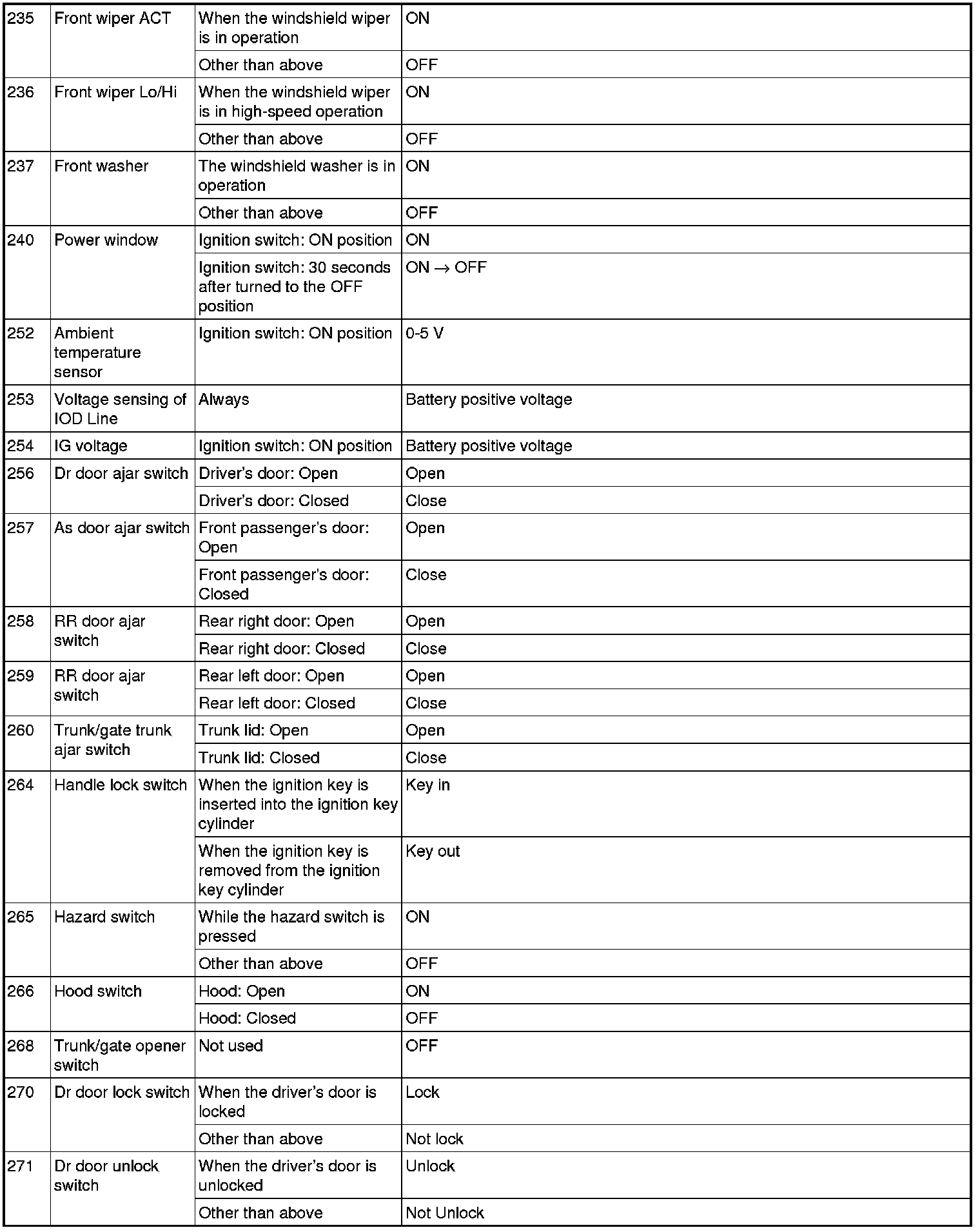

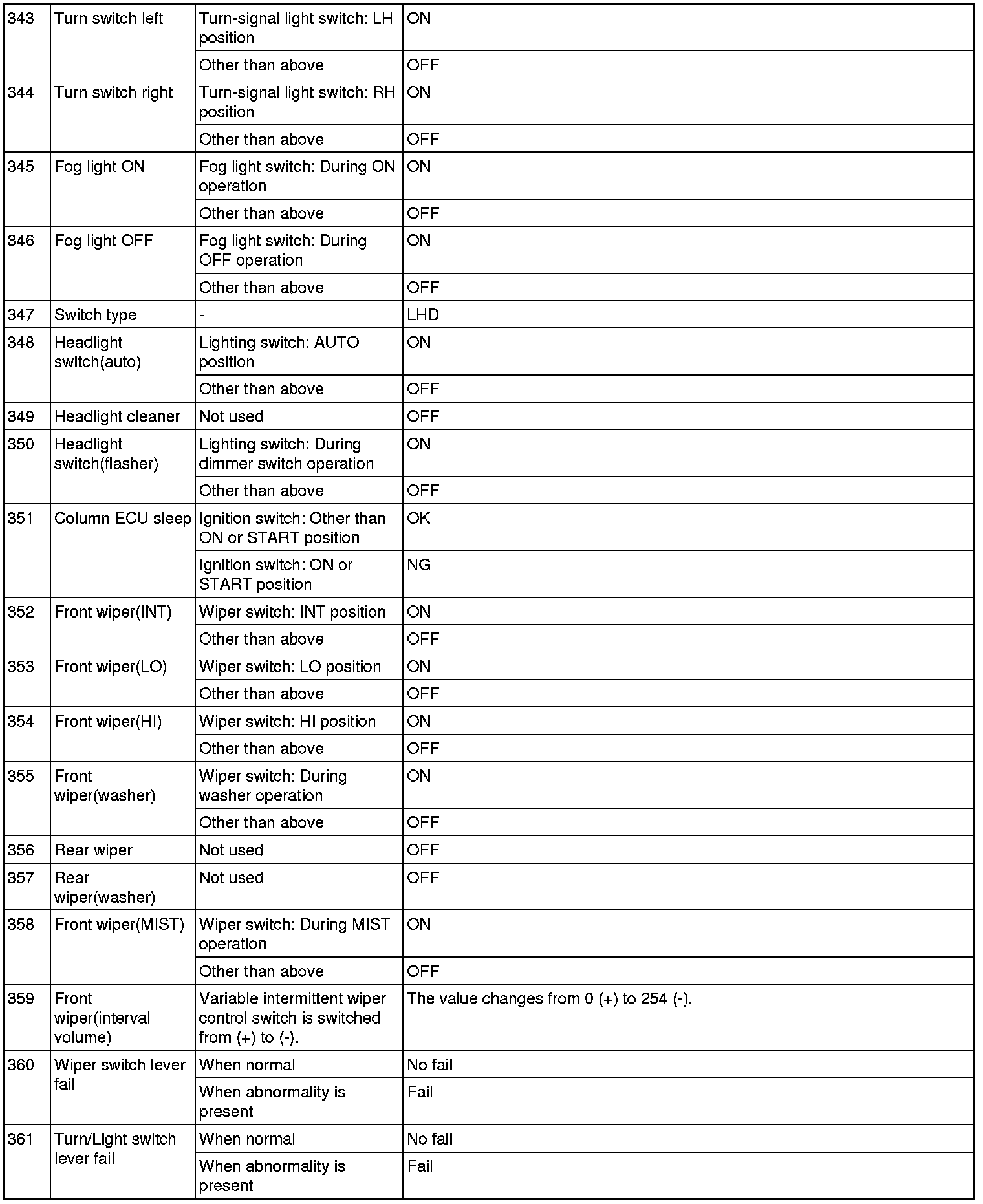

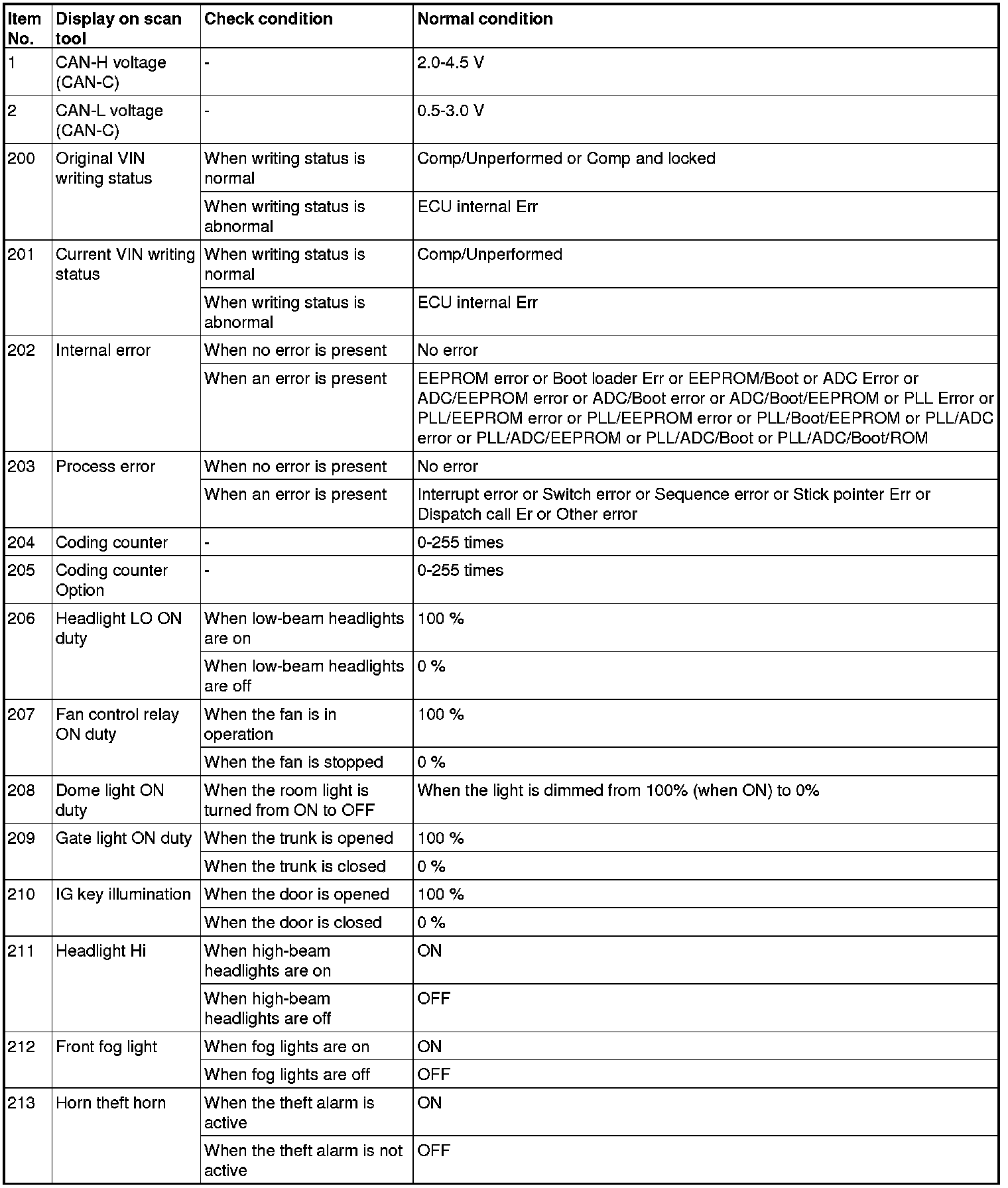

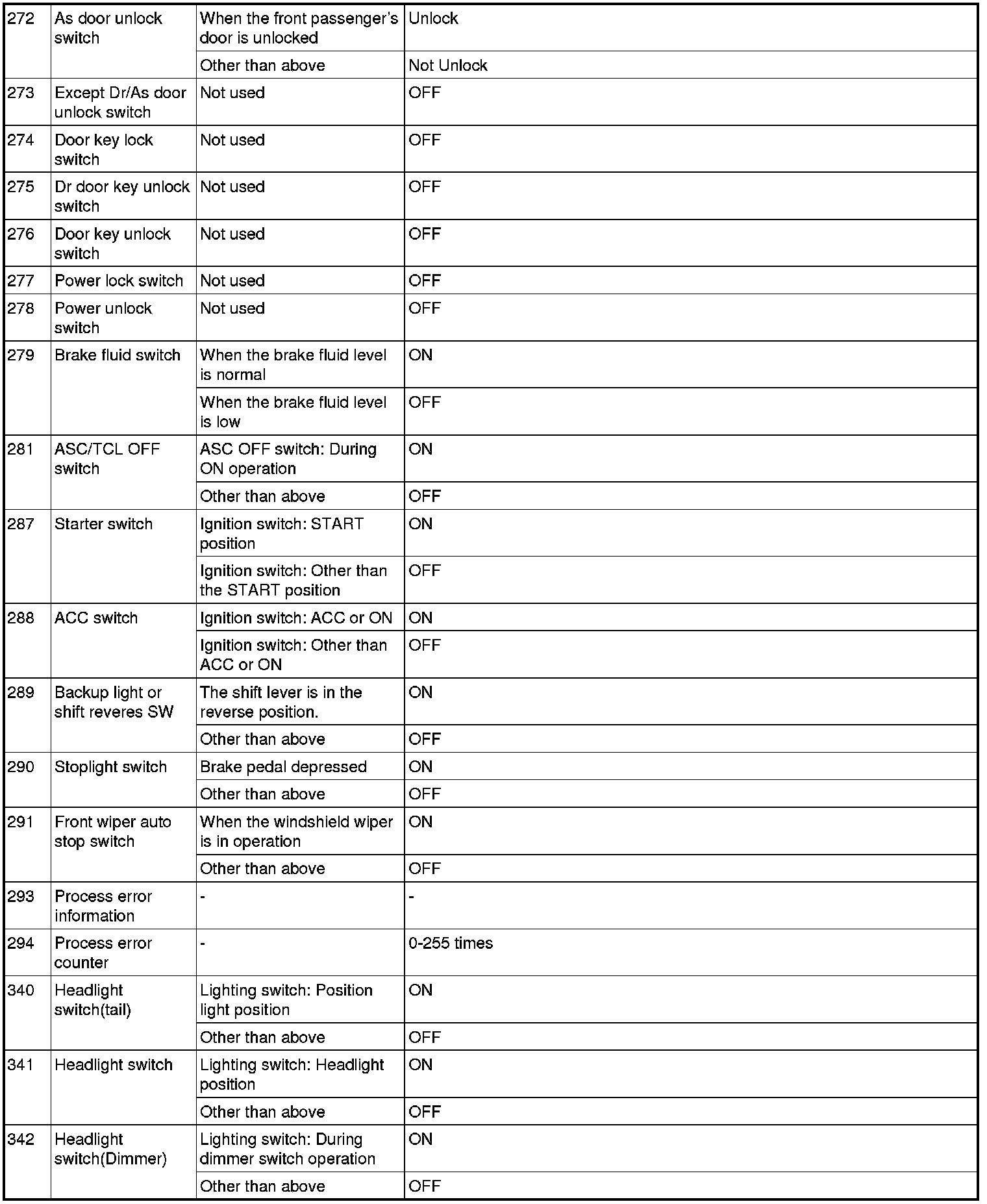

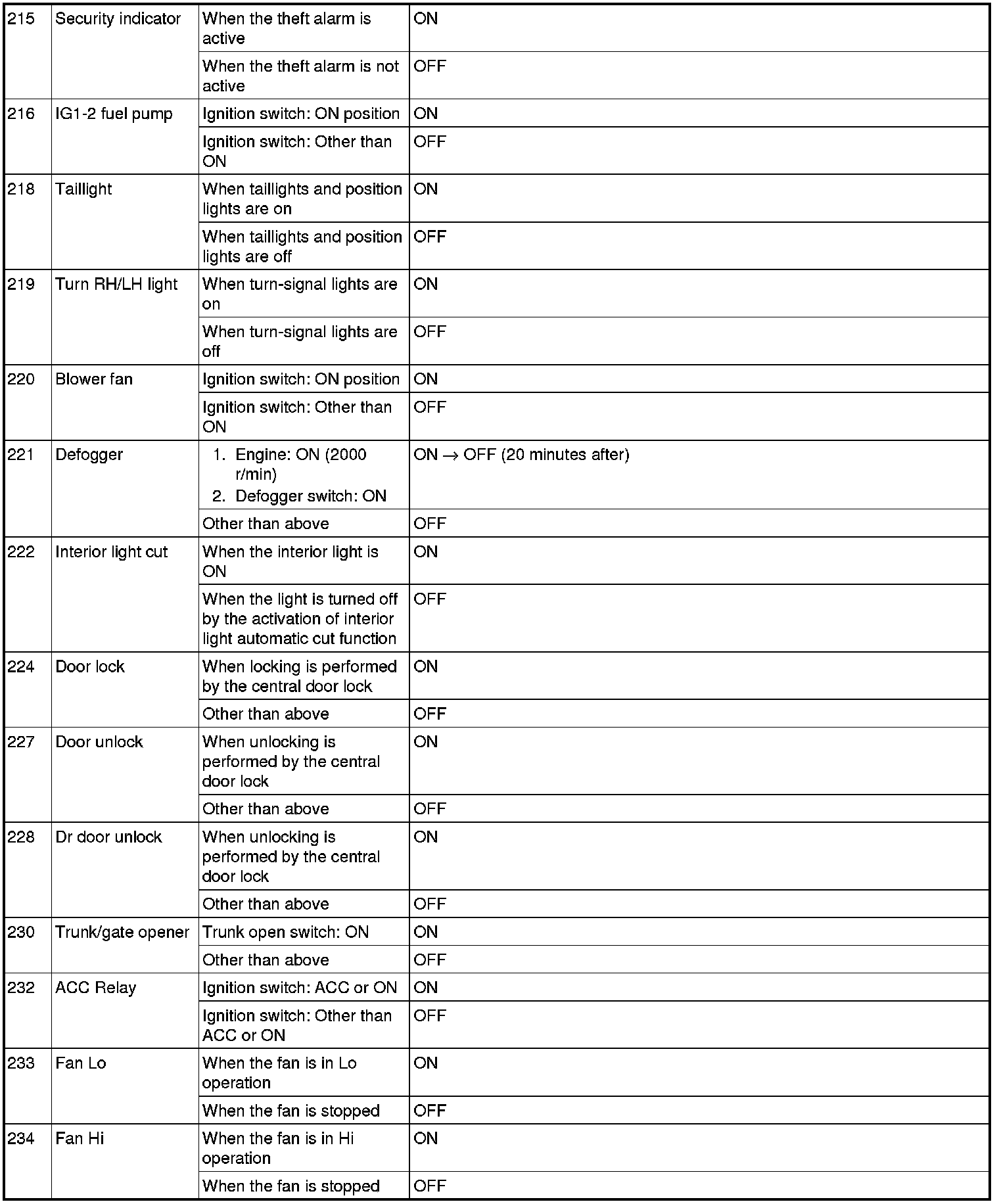

Data List Reference Table




SERVICE DATA

NOTE:
For some information result read out by the ECU, the specific items may not be displayed.
