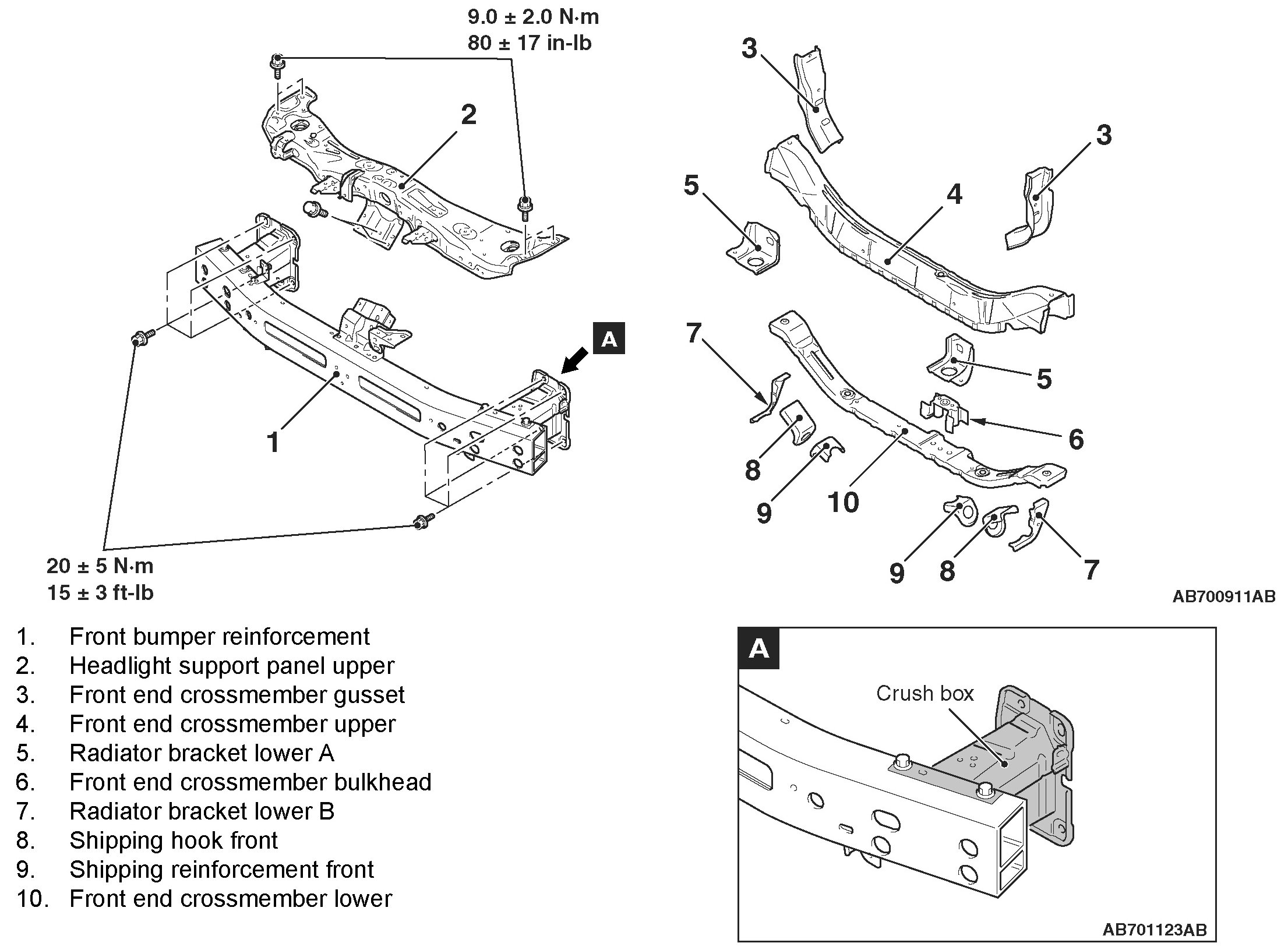

Exploded Views

HEADLIGHT SUPPORT

- The crush box structure, which has an octagonal cross-section at the front end of the front side-member, has been adopted. This structure can effectively absorb energy upon frontal impact and reduces the vehicle repair cost caused by a light collision.
- The bolt-on headlight support panel upper is used to improve maintainability.
- An aluminum front bumper reinforcement has been adopted to improve the body rigidity, handling stability, and riding comfort.






The crush box structure has been changed to straight type with an octagon cross-section so that the structure can effectively absorb energy from the impact at the time of collision.
