Ignition Switch: Service and Repair

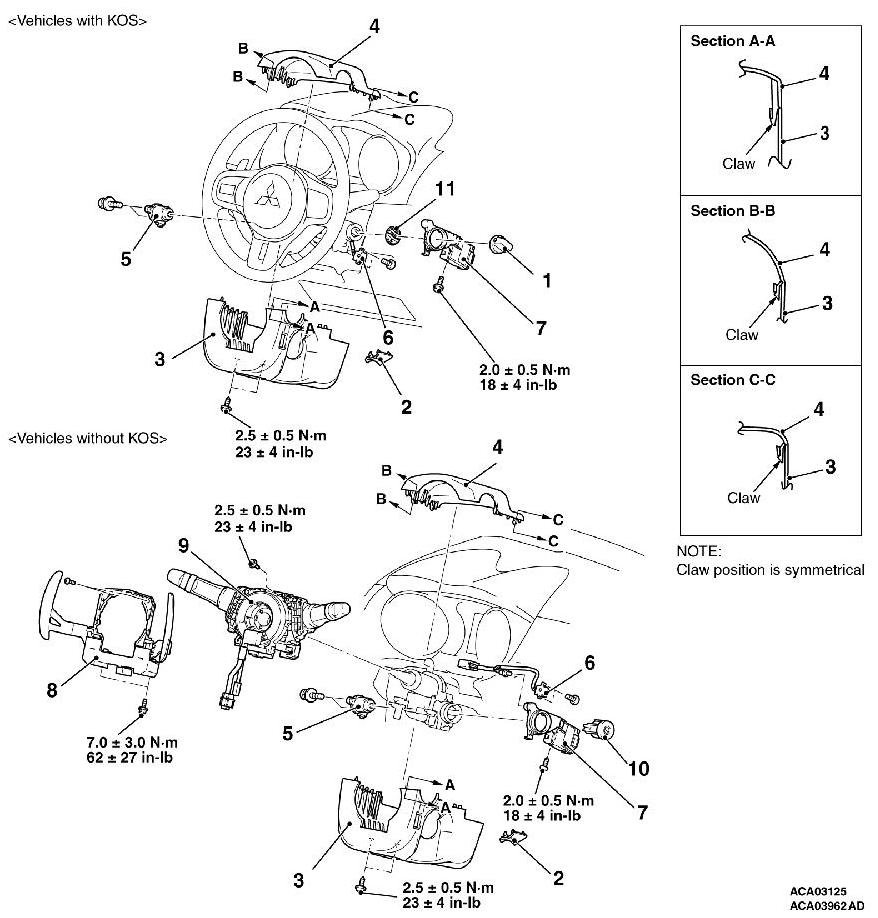

REMOVAL AND INSTALLATION

CAUTION:
Before removing the steering wheel assembly, refer to Service Precautions Service Precautions and Driver's Air Bag Module and Clock Spring Removal and Installation [Vehicles with WCM].

CAUTION:
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point Testing and Inspection). [Vehicles with WCM and ASC]













REMOVAL SERVICE POINTS

[[A]] STEERING LOCK CYLINDER REMOVAL [VEHICLES WITH WCM]

1. Insert the key into the steering lock cylinder, and turn the ignition key to the ACC position.

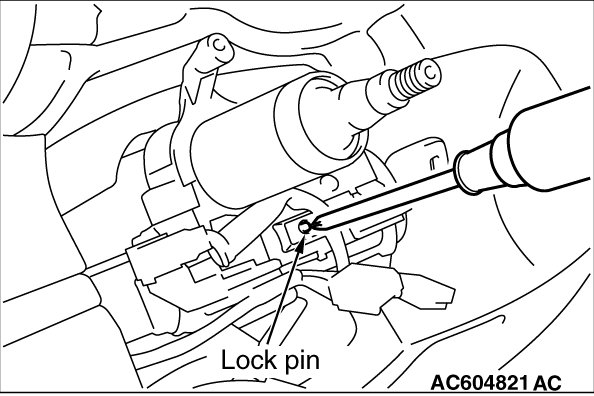

2. With using a cross-headed screw driver (small) or similar items to press in the lock pin, remove the ignition key, and then remove the steering lock cylinder.

[[B]] IG KNOB REMOVAL [VEHICLES WITH KOS]

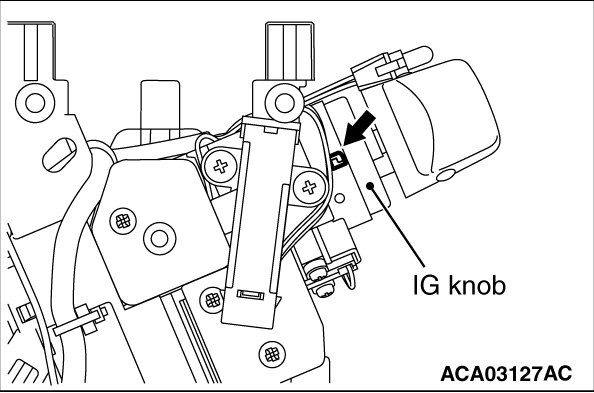

Insert a flat-tipped screwdriver into the concave portion as shown to pull out the IG knob.

INSTALLATION SERVICE POINT

]]A[[ WIRELESS CONTROL MODULE (WCM) [VEHICLES WITH WCM]/RECEIVER ANTENNA MODULE [VEHICLES WITH KOS] INSTALLATION

Check that the top claw of receiver antenna module is fixed securely to the boss of steering lock and the antenna is not floated on the key cylinder.
