Hands Free Module: Notes

NOTE:
  • While the hands free module is in diagnosis mode, connection with the Bluetooth® device is shut down.
  • While the hands free module is in diagnosis mode, the sound input to the microphone unit is output directly through the speaker.
  1. Select "hands free module" on "Service" screen.

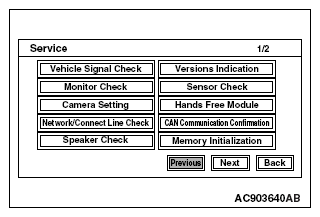

    Fig 1: Service Screen Display
    G07667339Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. "Hands Free Module" screen is displayed.

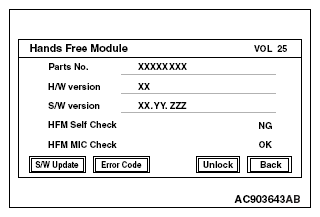

    Fig 2: Service Screen Display - Hands Free Module
    G07667340Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
