Network/Connect Line Check

Select "Network/Connect Line Check" on "Service" screen.

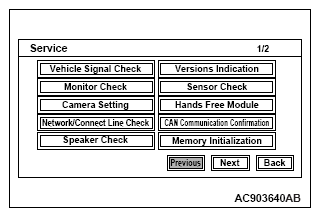

Fig 1: Service Screen Display
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
A network and connect line check will be initiated. The "Network/Connect Line Check" screen will display how the check is in progress.

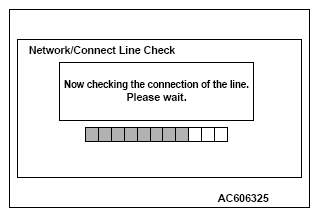

Fig 2: Service Screen Display - Network/Connect Line Check Progress
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When the network and connect line check is finished, the screen will change to "Network/Connect Line Result" to show the check results.
NOTE: If there is "NG" or "N/A" as the check results, select "NG Code" on the "Network/Connect Line Result" screen. Then "NG code Indication" screen will show the NG code.

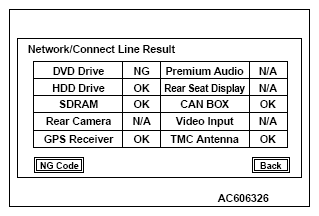

Fig 3: Service Screen Display - Network/Connect Line Result
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If "Back" is selected on "Network/Connect Line Result", the screen will return to "Service" screen.

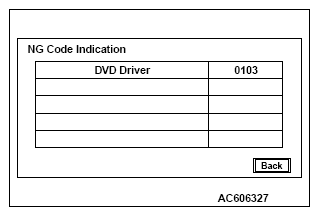

Fig 4: Service Screen Display - NG Code Indication
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
