Engine And Transaxle

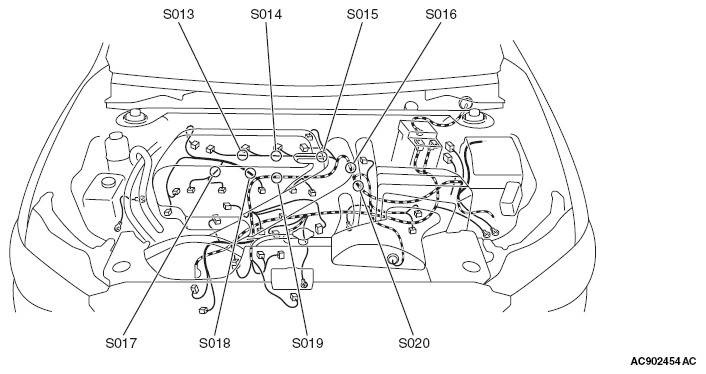

Fig 1: Identifying Splice Locations - Engine & Transaxle
G08304646Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
