Removal And Installation: Notes

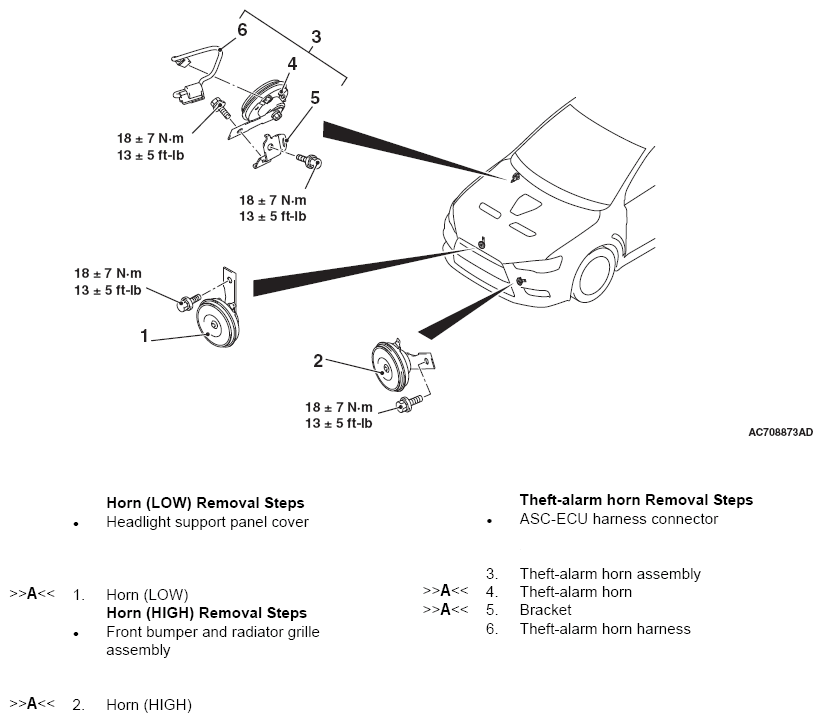

Fig 1: Removal/Installation Of Horn, Bracket & Theft-Alarm Horn Harness With Torque Specifications
G06678264Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
