Disassembly And Assembly - 16-Inch Front Disc Brake (Except RALLIART): Notes

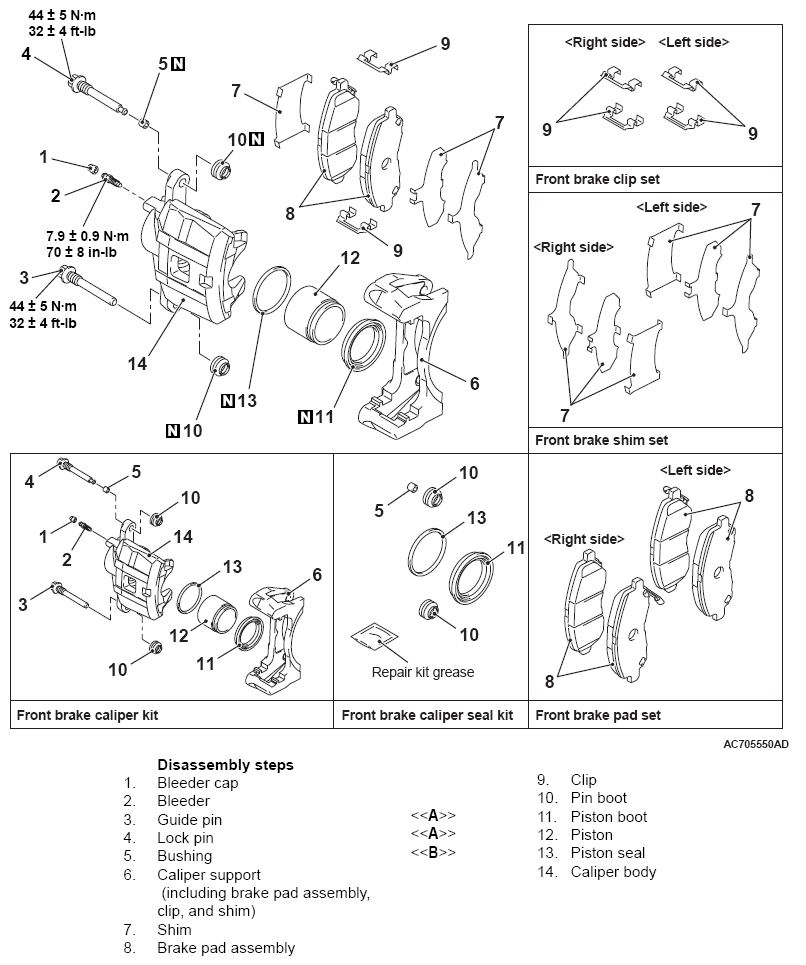

Fig 1: Exploded View Of Front Disc Brake With Torque Specifications (16-Inch, Except Ralliart)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Install the brake pad assembly (with wear indicator) to the inner side of the brake disc, making sure that the wear indicator is located on the top.
