Lancer SPORTBACK

WARNING: This page is about a different variant/trim than selected.

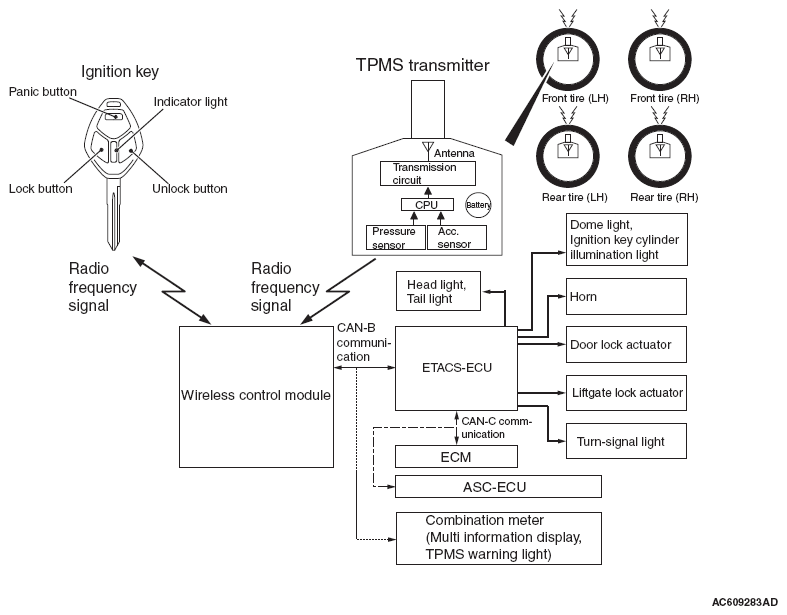

Fig 1: Wireless Control Module (WCM) - System Diagram (Lancer Sportback)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: In case of replacement of WCM, all keyless ID, key ID and tire pressure sensor ID should be re-registered using scan tool MB991958 (M.U.T.-III sub-assembly).
