System Configuration: Lancer

WARNING: This page is about a different variant/trim than selected.

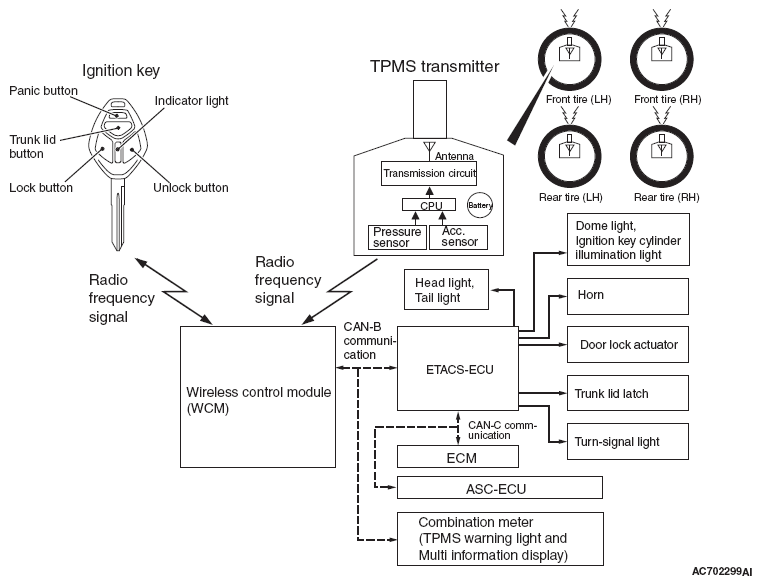

Fig 1: Wireless Control Module (WCM) - System Diagram (Lancer)
G06666131Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
