Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.
WARNING: Coin-type lithium battery may contain perchlorate materials. Special handling may apply. For additional information, see www.dtsc.ca.gov/hazardouswaste/perchlorate.

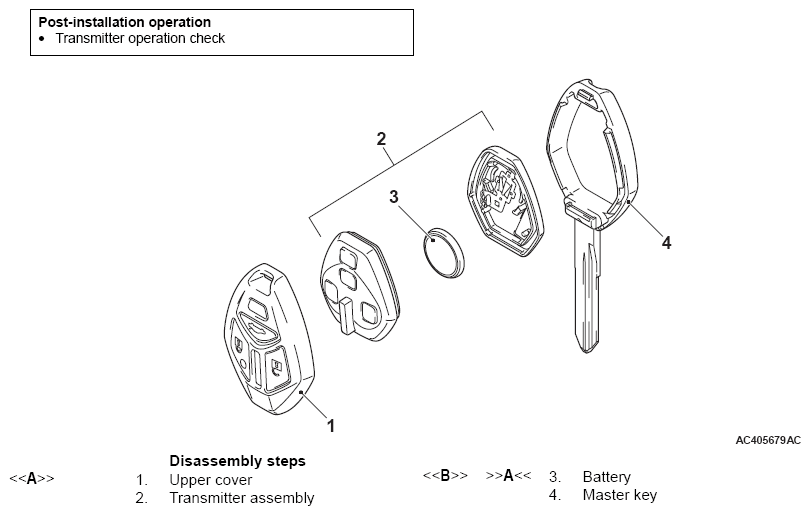

Fig 1: Exploded View Of Transmitter Key Assembly
G08294816Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
