Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: When WCM has been replaced, all key ID codes should be registered, referring to the ID code registration judgment table (Refer to ID CODES REGISTRATION PROCEDURE ).

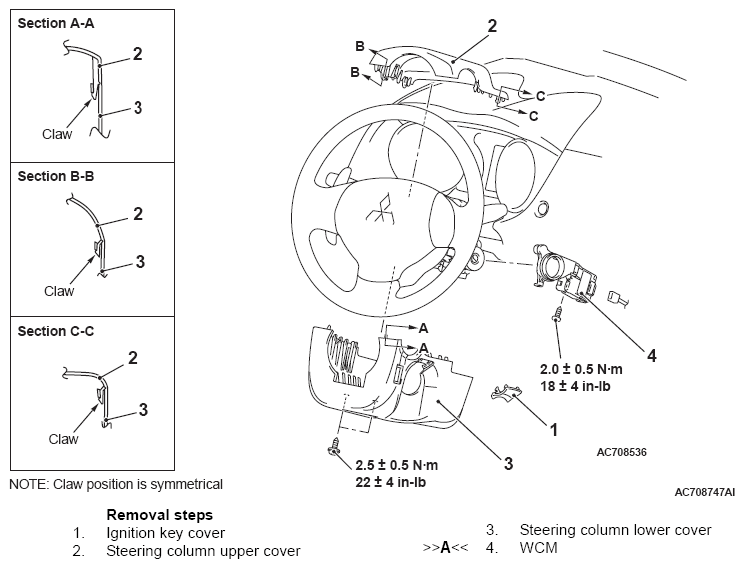

Fig 1: WCM, Ignition Key Cover, Steering Column Upper Cover And Steering Column Lower Cover With Torque Specifications
G08294815Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
