Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

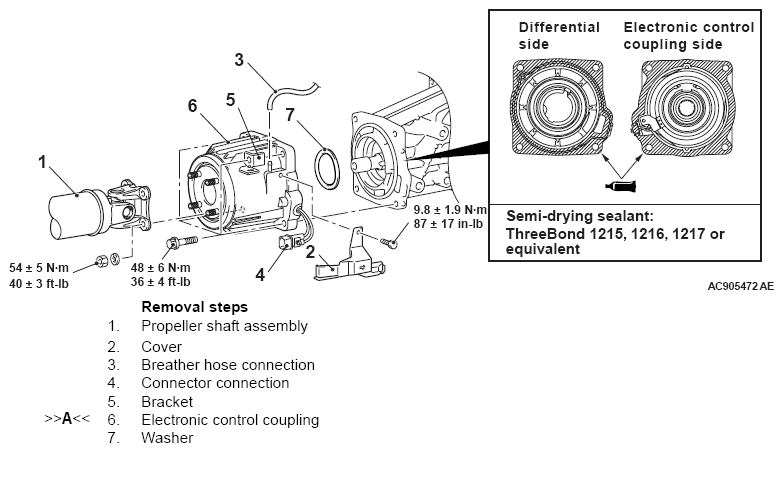

Fig 1: Electronic Control Coupling Components With Torque Specifications
G08293747Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
