Inspection Procedure 1: Scan Tool MB991958 Cannot Communicate With The Electronic Control AWD System: Notes

WARNING: This page is about a different variant/trim than selected.

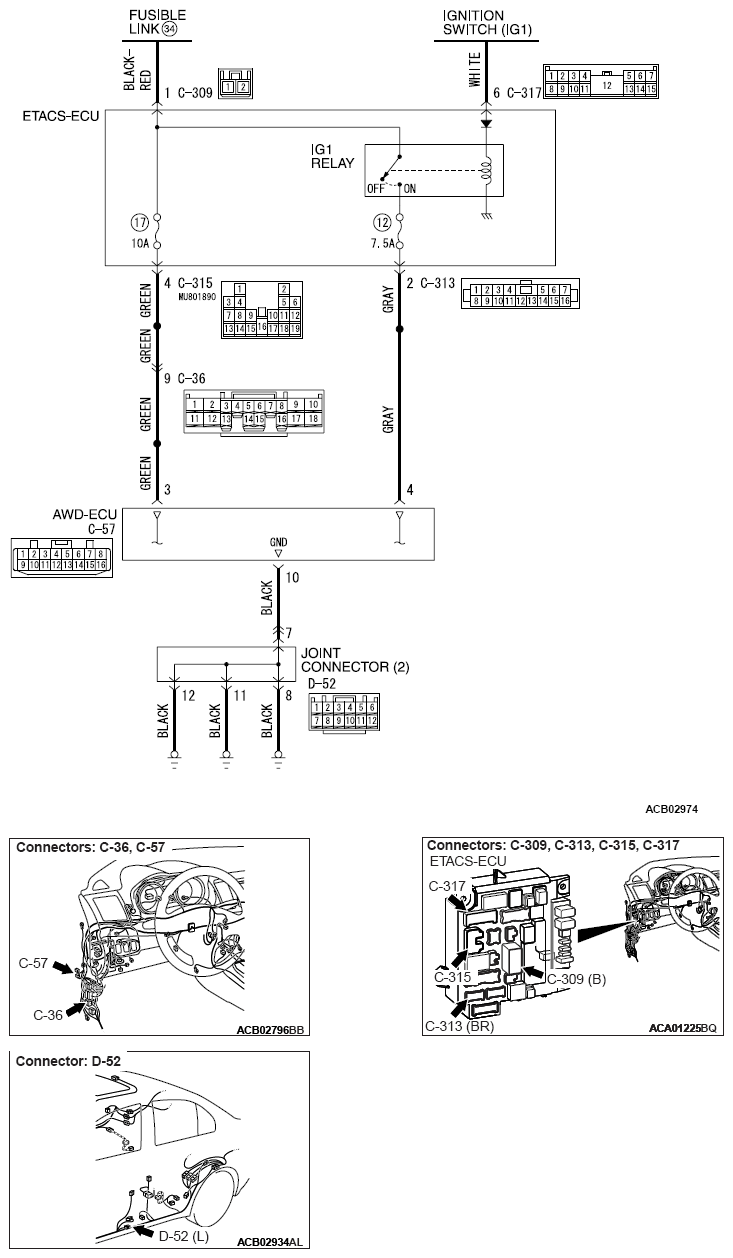

Fig 1: Electronic Control System - Circuit Diagram (AWD)
G08293736Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
