Removal And Installation

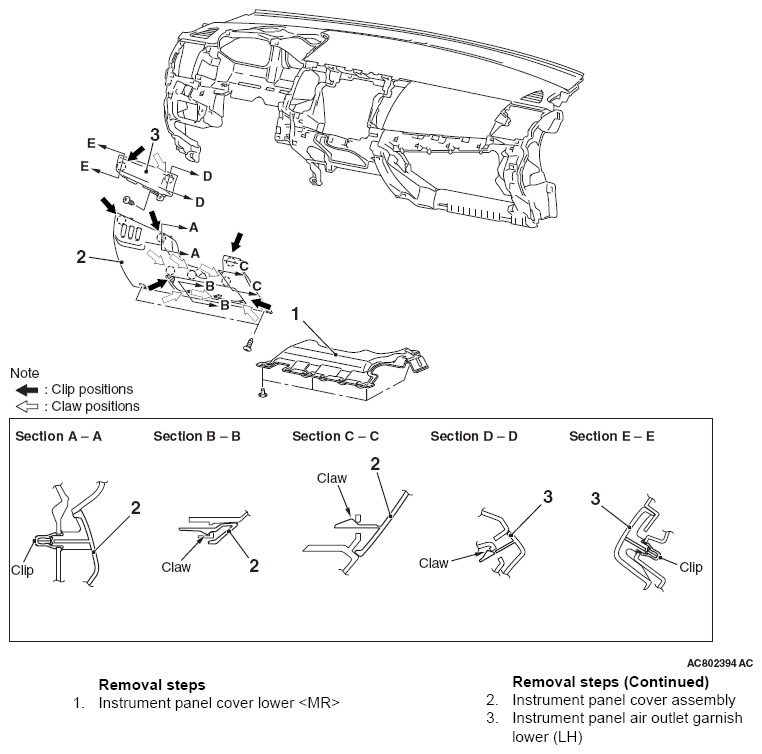

Fig 1: Removal & Installation Of Instrument Lower Panel
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
