Capacity Specifications

Refrigerant Capacity

Refrigerant

Type R134a (HFC - 134a)
Amount g (oz) 480 - 520 (16.9 - 18.3)

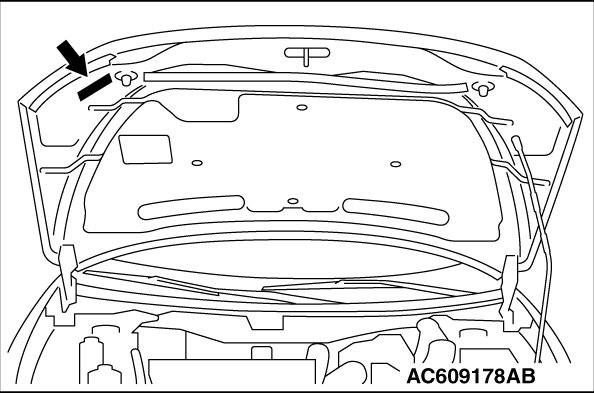

The underhood refrigerant gas caution label also indicates the refrigerant capacity.

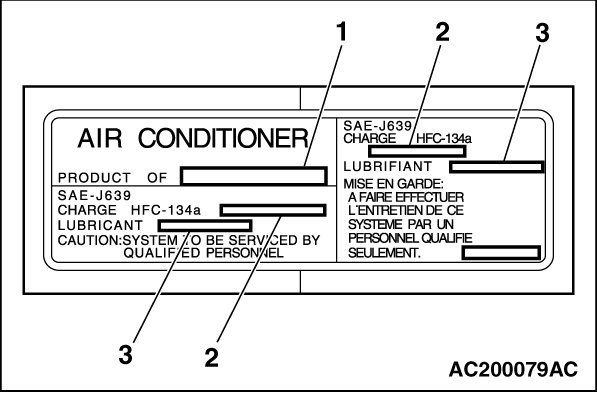

1. Name of A/C manufacturer
2. Amount of refrigerant
3. Name of compressor oil
