Removal And Installation

NOTE: Refer to INSTRUMENT PANEL ASSEMBLY .

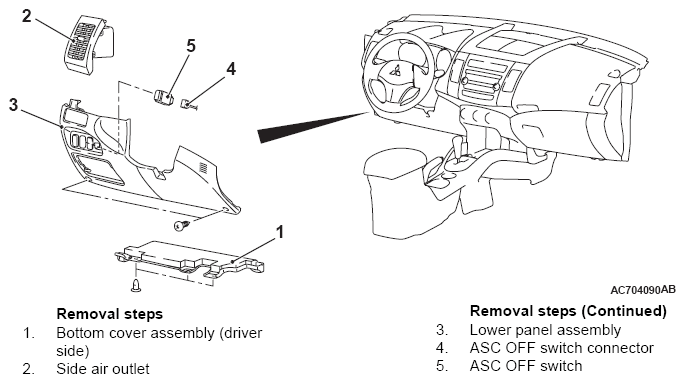

Fig 1: Identifying Instrument Panel Assembly Components
G08294099Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
