OEM Component Locations - Lancer: Grounding

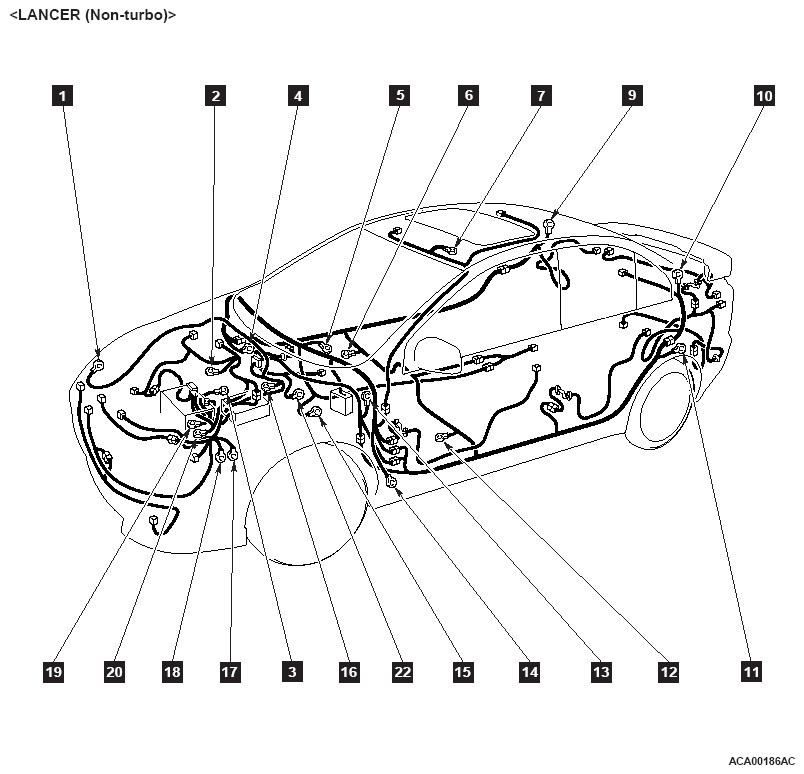

Fig 1: Identifying Grounding Locations - Lancer (Non-Turbo)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: 1 to 22 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

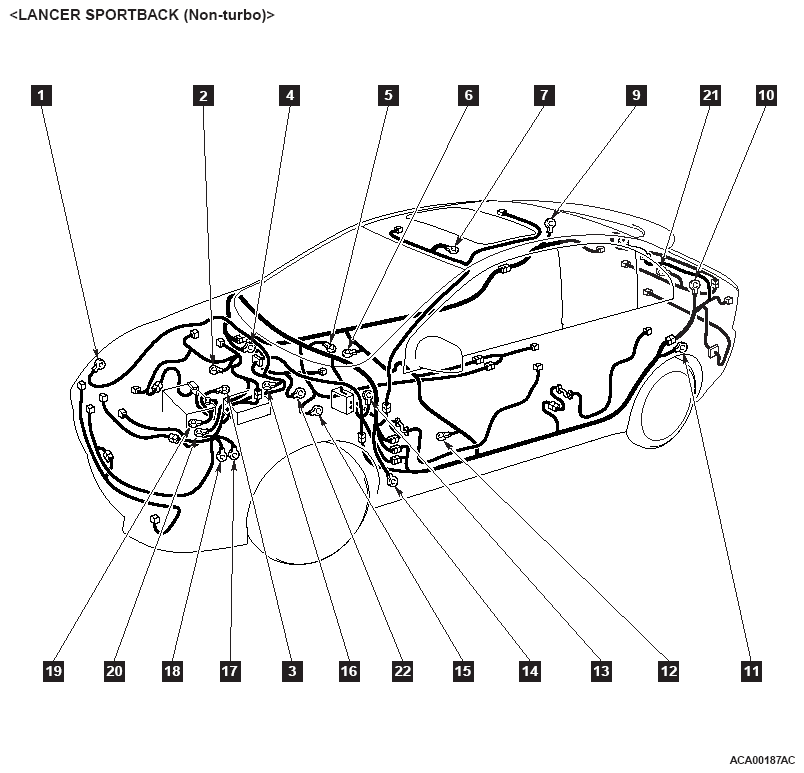

Fig 2: Identifying Grounding Locations - Lancer Sportback (Non-Turbo)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: 1 to 22 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

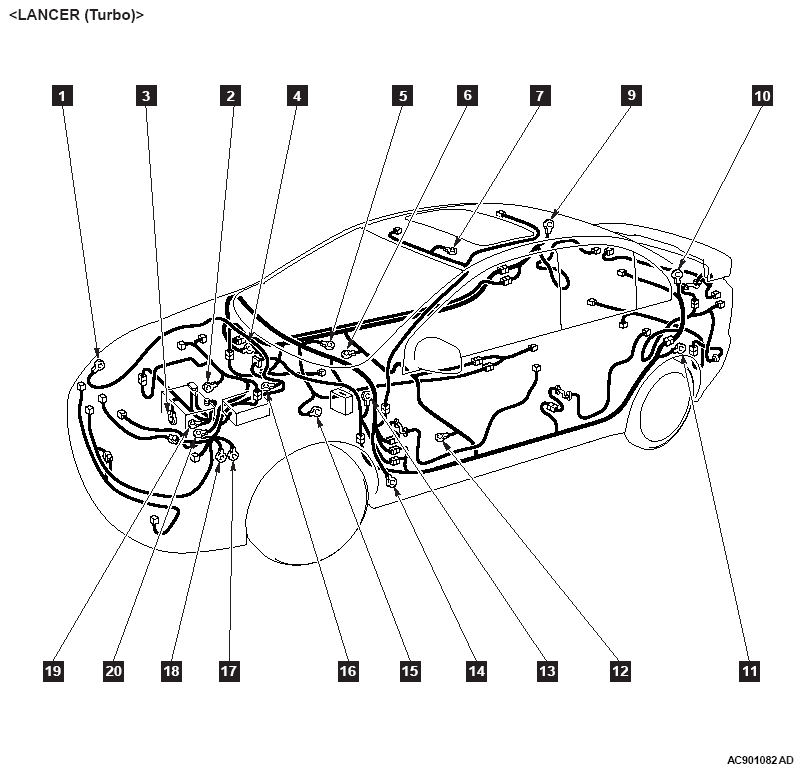

Fig 3: Identifying Grounding Locations - Lancer (Turbo)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: 1 to 20 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

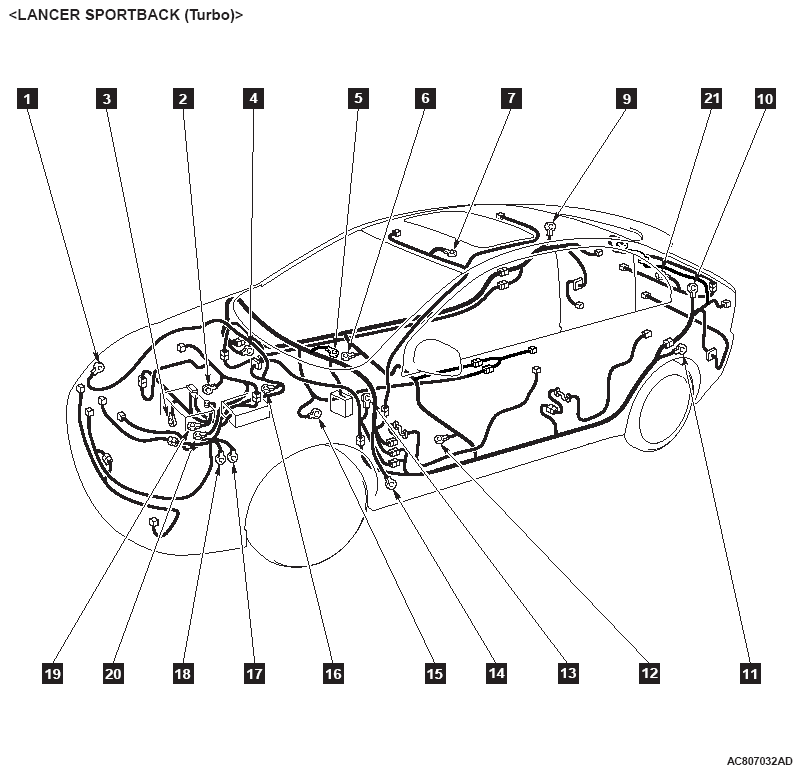

Fig 4: Identifying Grounding Locations - Lancer Sportback (Turbo)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: 1 to 21 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

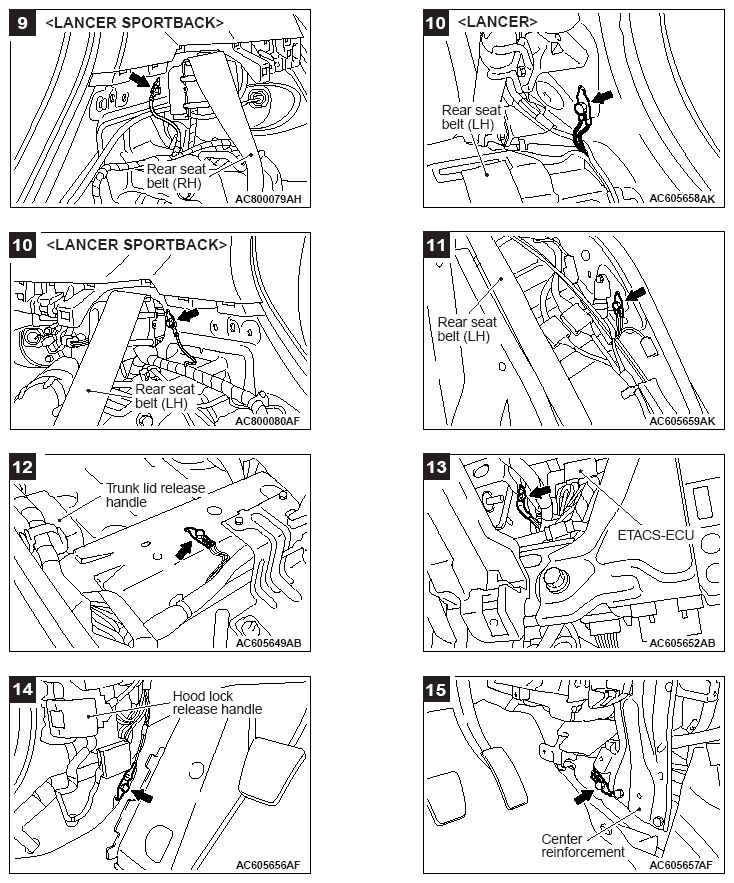

Fig 5: Locating Grounding (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

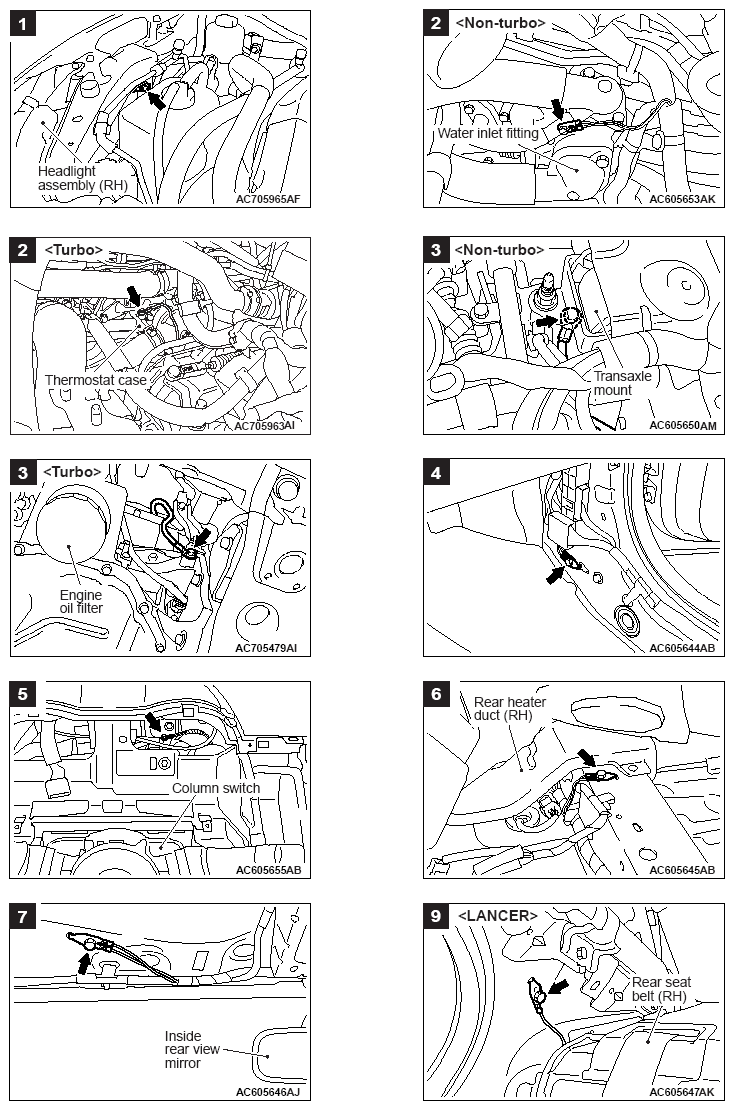

Fig 6: Locating Grounding (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

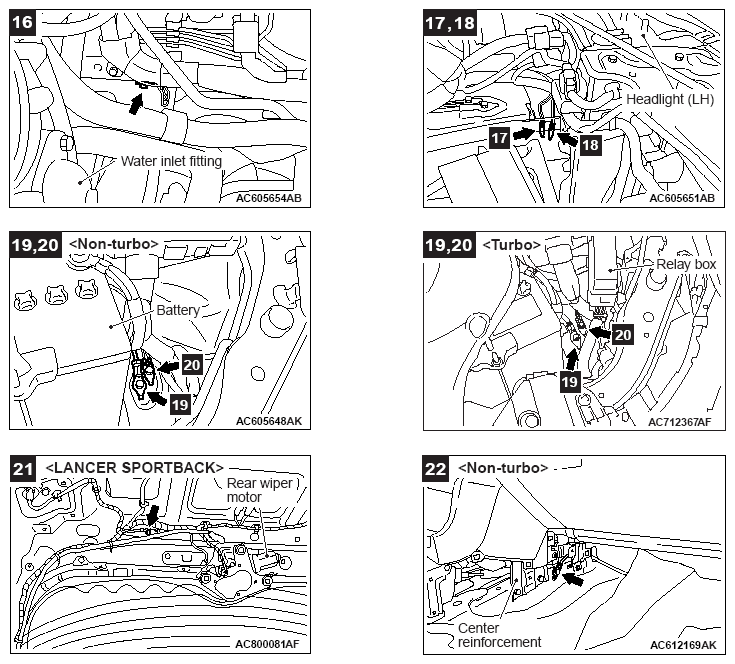

Fig 7: Locating Grounding (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
