Vehicles For RALLIART

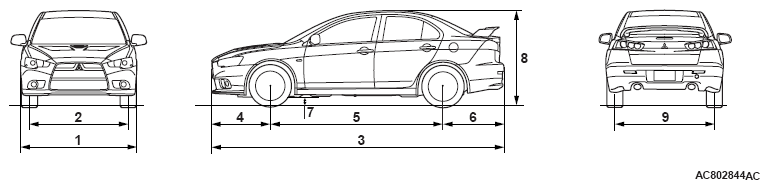

LANCER VEHICLE DIMENSIONS - RALLIART
| Item | RALLIART | |||
|---|---|---|---|---|
| CY4AS | ||||
| MUFZL2M/MUFZL3M | ||||
| Vehicle dimension mm (in) | Overall width | 1 | 1, 760 (69.4) | |
| Tread-front | 2 | 1, 530 (60.2) | ||
| Overall length | 3 | 4, 570 (180.0) | ||
| Overhang-front | 4 | 955 (37.6) | ||
| Wheelbase | 5 | 2, 635 (103.7) | ||
| Overhang-rear | 6 | 980 (38.7) | ||
| Ground clearance | 7 | 147 (5.8) | ||
| Overall height (unladen) | 8 | 1, 490 (58.7) | ||
| Tread-rear | 9 | 1, 530 (60.2) | ||
| Vehicle weight kg (lb) | Curb weight | Without full optional parts | 1, 570 (3, 461) | |
| With full optional parts | 1, 608 (3, 545) | |||
| Gross vehicle weight rating | 1, 990 (4, 388) | |||
| Gross axle weight rating-front | 1, 080 (2, 381) | |||
| Gross axle weight rating-rear | 980 (2, 161) | |||
| Seating capacity | 5 | |||
| Engine | Model No. | 4B11 | ||
| Type | DOHC MIVEC with charge air cooler turbocharger | |||
| Piston displacement cm3 (cu in) | 1, 998 (121.9) | |||
| Maximum output kW/r/min (HP/r/min) | 177/6, 000 (237/6, 000) | |||
| Maximum torque N m/r/min (ft-lb/r/min) | 343/2, 500 - 4, 750 (253/2, 500 - 4, 750) | |||
| Fuel system | Fuel supply system | MFI | ||
| Transaxle | Model No. | W6DGA | ||
| Type | AWD, TC-SST | |||
| Turning radius m (ft) | 5.0 (16.4) | |||
