How To Shift Lock Forced Release: CVT

  1. Turn the ignition switch to the position other than the LOCK (OFF) position.
  2. Remove the shift lock forced release switch cover shown in the illustration. While pressing the shift lock forced release switch with a screwdriver or a similar tool, move the selector lever.

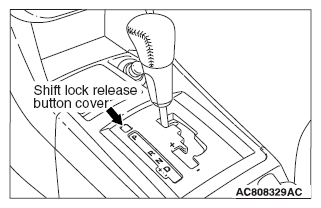

    Fig 1: Locating Shift Lock Release Button Cover
    G06468283Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
