Disassembly and Reassembly

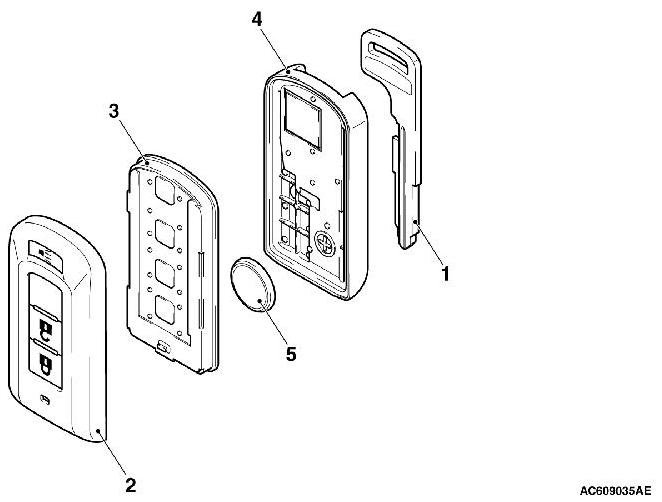

DISASSEMBLY AND ASSEMBLY













DISASSEMBLY SERVICE POINTS

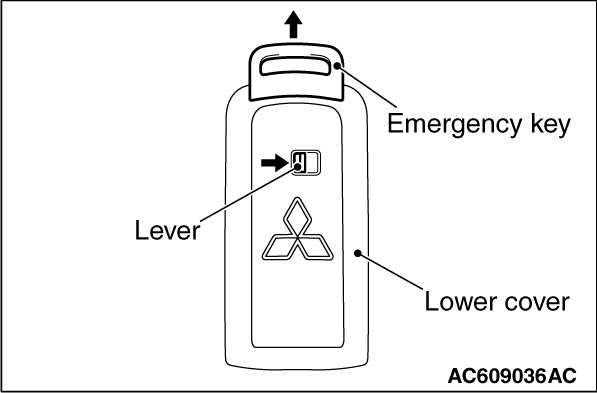

[[A]] EMERGENCY KEY REMOVAL





Move the lever on the lower cover to the direction shown by the arrow to remove the emergency key from the keyless operation key.

[[B]] UPPER COVER REMOVAL

CAUTION:
Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.

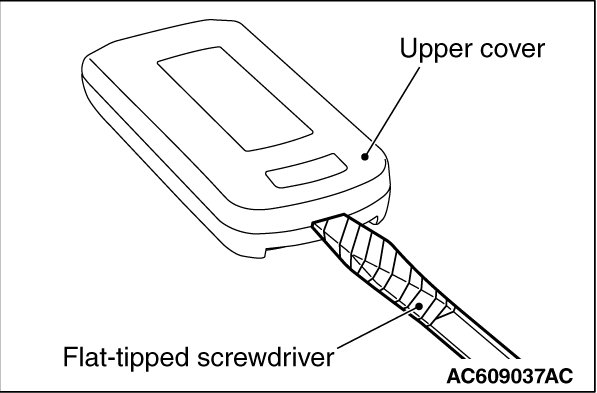

Set a flat-tipped screwdriver wrapped with protective tape as shown in the figure, and pry off the keyless operation key.

ASSEMBLY SERVICE POINT

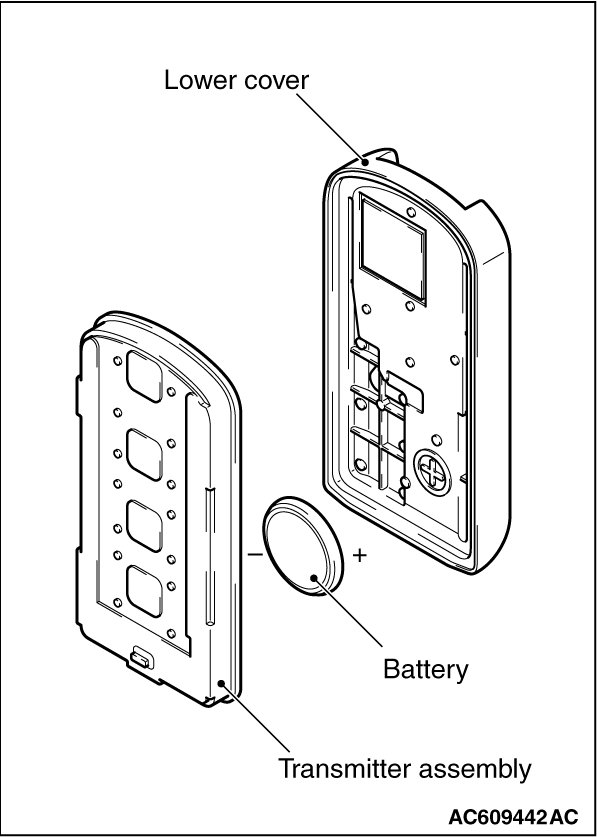

]]A[[ BATTERY INSTALLATION

CAUTION:
Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.





Install a battery with the positive side facing toward the lower cover.
Replacement battery: Coin-type lithium battery CR2032
