Removal And Installation

WARNING: Before removing the driver's air bag module assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING .

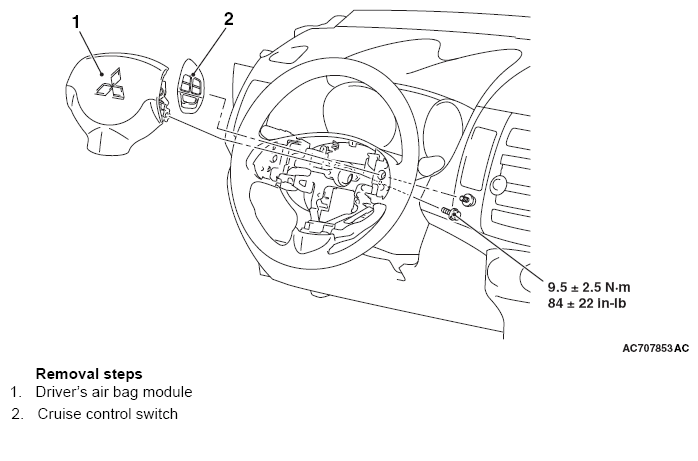

Fig 1: Removing/Installing Cruise Control Switch With Torque Specifications
G07042596Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
