Disassembly And Assembly

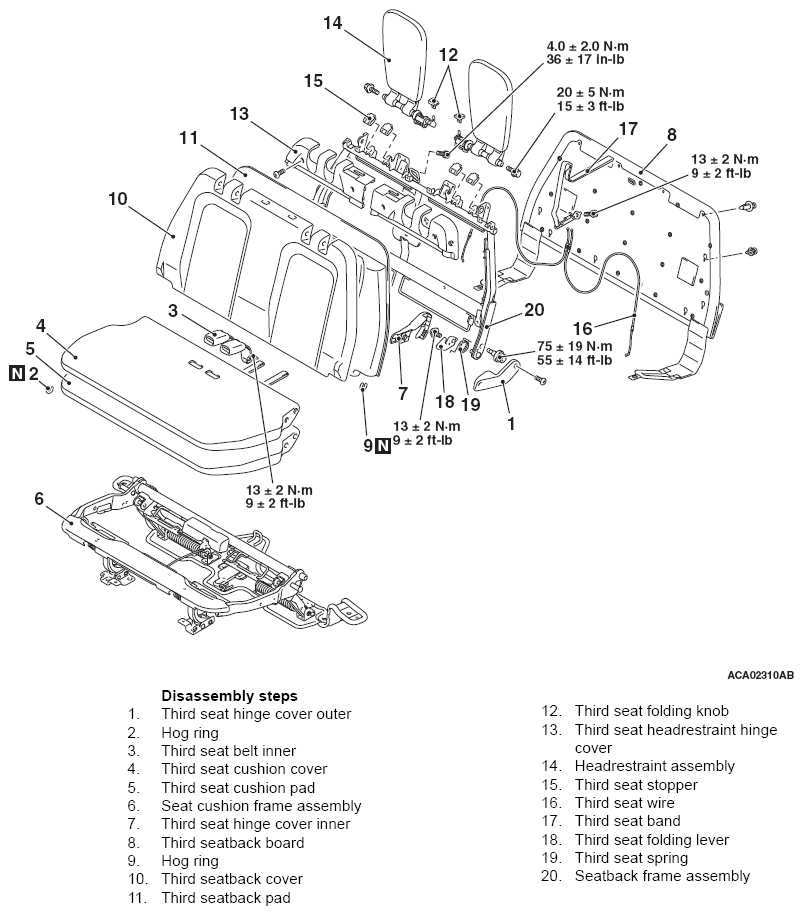

Fig 1: Third Seat Assembly Disassembly And Assembly With Torque Specifications
G07044521Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
