Removal And Installation: Notes

CAUTION: The part indicated by * is the nut with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten it to the specified torque.

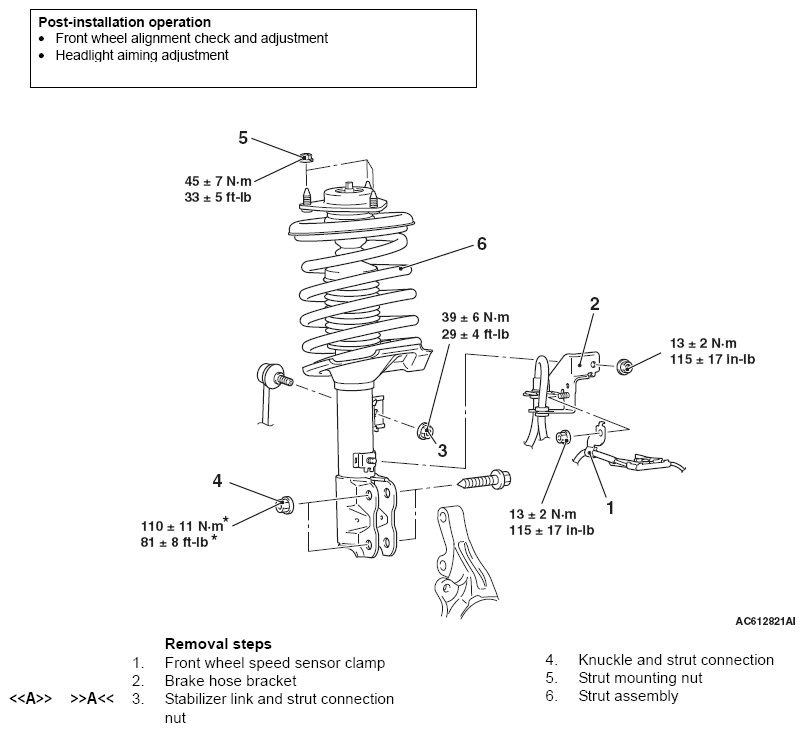

Fig 1: Strut Assembly Removal And Installation With Torque Specifications
G07041736Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
