Removal And Installation < 2.4L Engine >: Notes

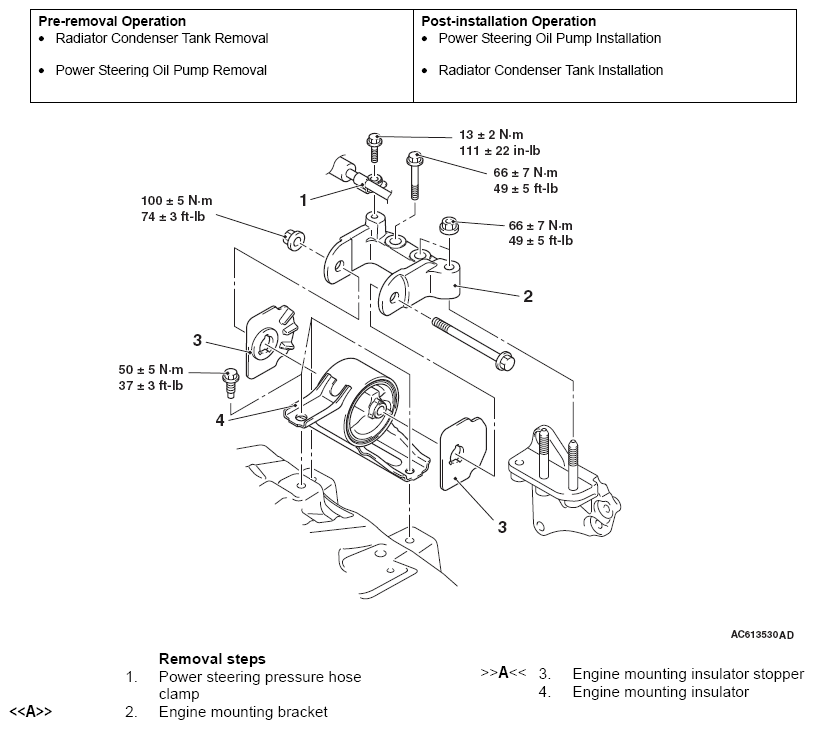

Fig 1: Engine Mounting Removal And Installation With Torque Specifications - 2.4L Engine
G07041700Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
