Generator Assembly: Inspection: Stator

Check the electrical continuity of the points shown in the table below. Confirm that there is electrical continuity.

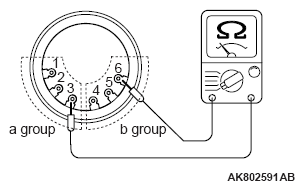

Fig 1: Identifying Stator

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

If there is not, replace the stator.

CONTINUITY CHECK

Terminal connector of tester	Electrical continuity
1 - 2	Presence of electrical continuity
1 - 3
2 - 3
4 - 5
4 - 6
5 - 6

Check the electrical continuity of the points shown in the table below. Confirm that there is not electrical continuity.

Fig 2: Checking Stator Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

If there is, replace the stator.

CONTINUITY CHECK

Terminal connector of tester	Electrical continuity
1 - Core	Absence of electrical continuity
2 - Core
3 - Core
4 - Core
5 - Core
6 - Core

Check the electrical continuity of the points shown in the table below. Confirm that there is not electrical continuity.

Fig 3: Checking Continuity Of Stator

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

If there is, replace the stator.

CONTINUITY CHECK

Terminal connector of tester	Electrical continuity
1 - 4	Absence of electrical continuity
1 - 5
1 - 6
2 - 4
2 - 5
2 - 6
3 - 4
3 - 5
3 - 6
