Removal And Installation: Notes

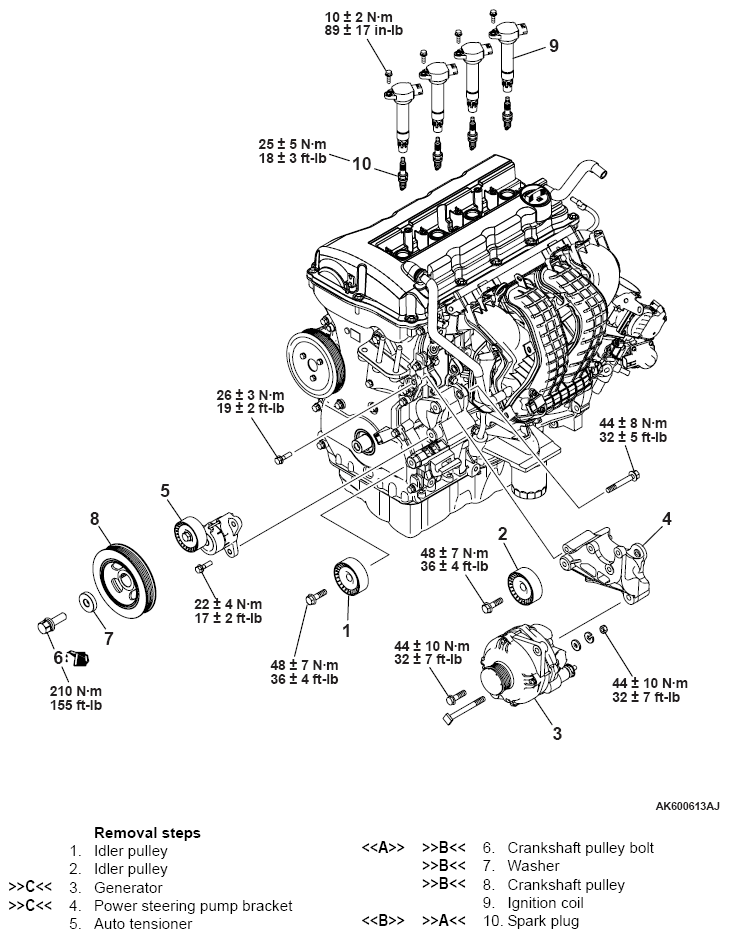

Fig 1: Generator And Ignition System Replacement Components With Torque Specifications
G07046068Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
