Removal And Installation

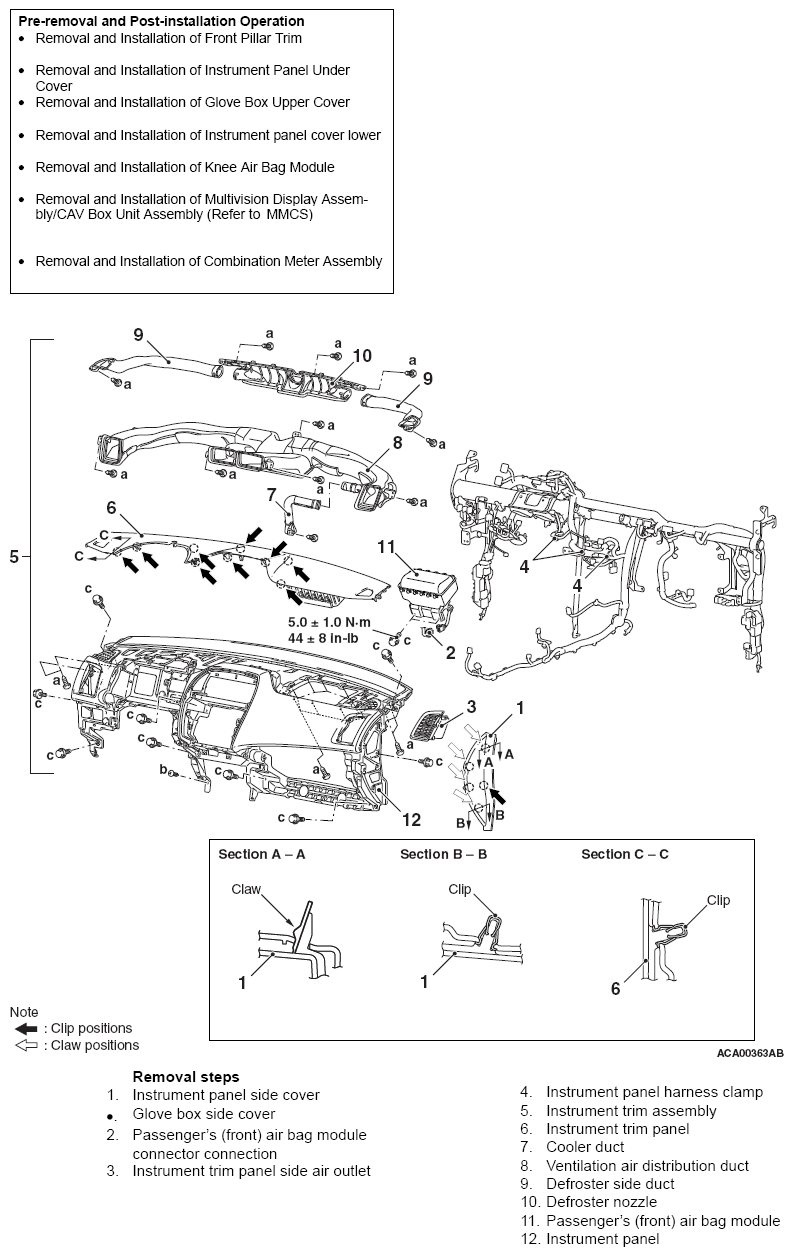

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in Fig 1.
BOLTS AND SCREW SPECIFICATION
| Name | Symbol | Size (D x L) mm | Color | Shape |
|---|---|---|---|---|
| Tapping screw | a | 5 x 14 | - | |
| b | 5 x 16 | - | ||
| Bolt with washer | c | 6 x 16 | - |
CAUTION:
- Before removing the passenger's (front) air bag module, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING .
- Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.
