Disassembly And Reassembly: Notes

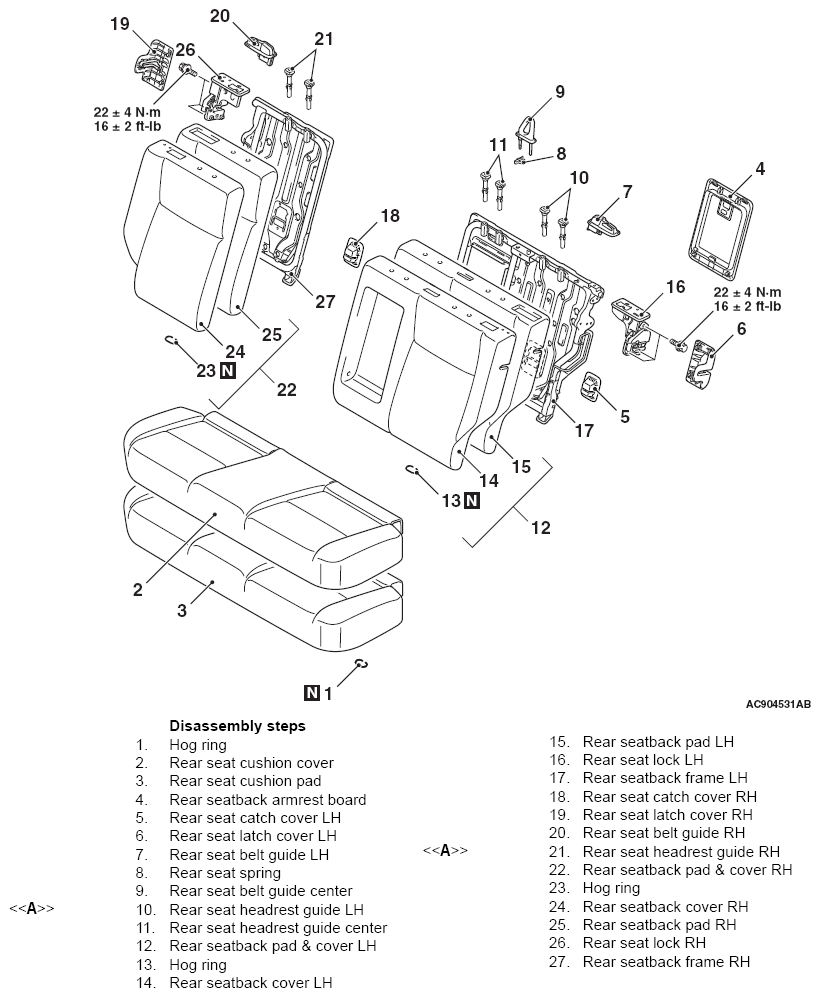

Fig 1: Rear Seat Cushion Assembly Replacement Components With Torque Specifications
G07049353Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
