Disassembly And Assembly: Notes

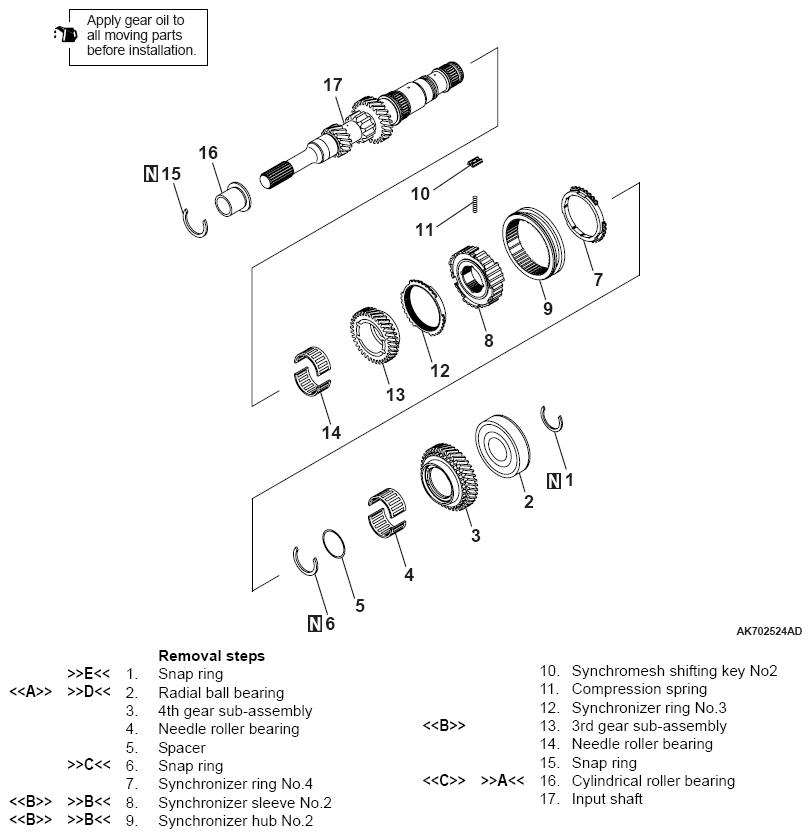

Fig 1: Identifying Input Shaft Remove/Install Components
G07047532Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
