Removal And Installation: Notes

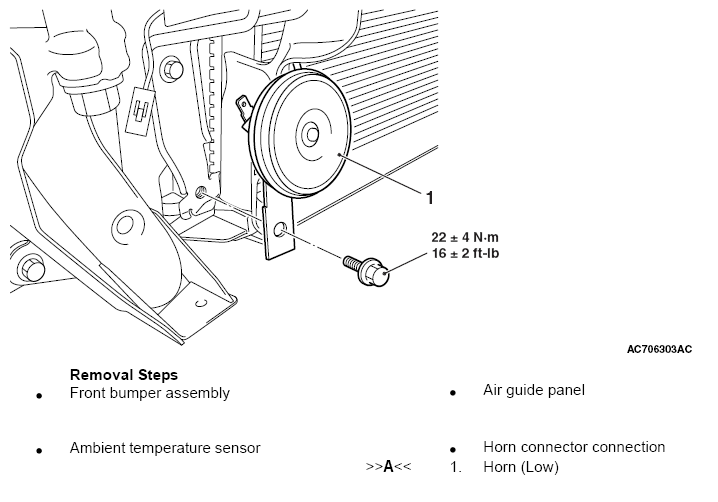

Fig 1: Removing Order Of Horn Components With Torque Specification
G08300110Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
