Removal And Installation: Notes

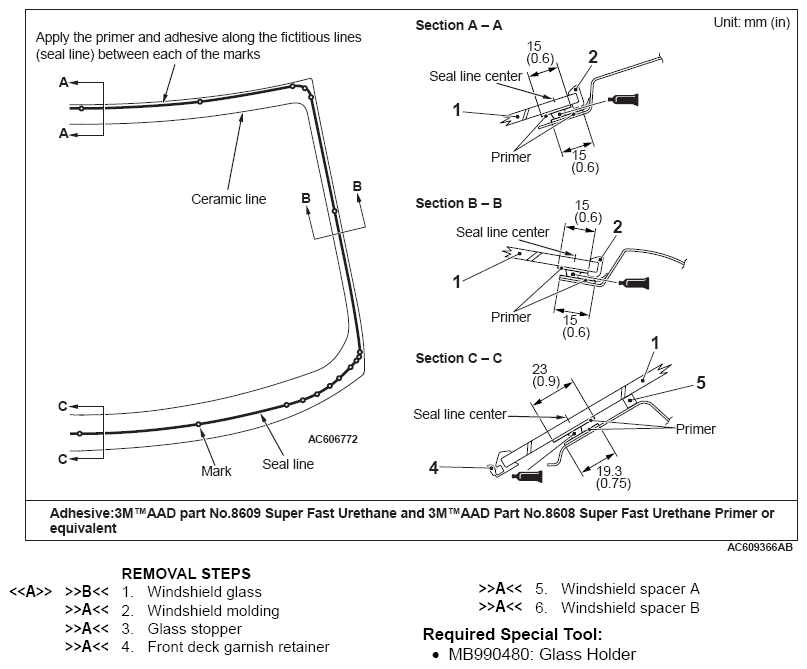

Fig 1: Windshield Components (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

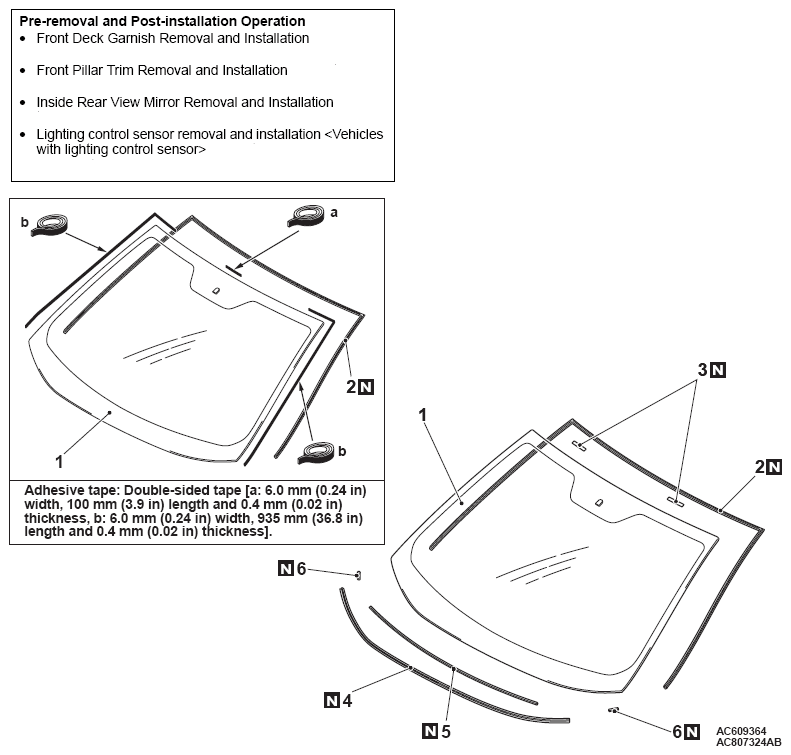

Fig 2: Windshield Components (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB990480: Glass Holder
