Under Body

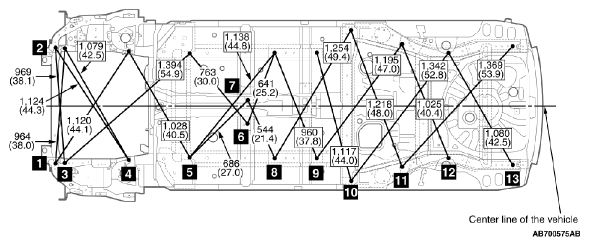

Fig 1: Under Body Dimensions And Measurement Points (Type A) (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

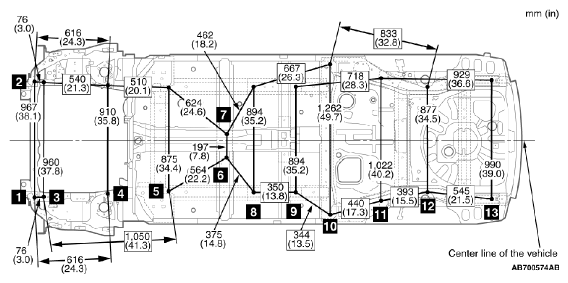

Fig 2: Under Body Dimensions And Measurement Points (Type A) (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

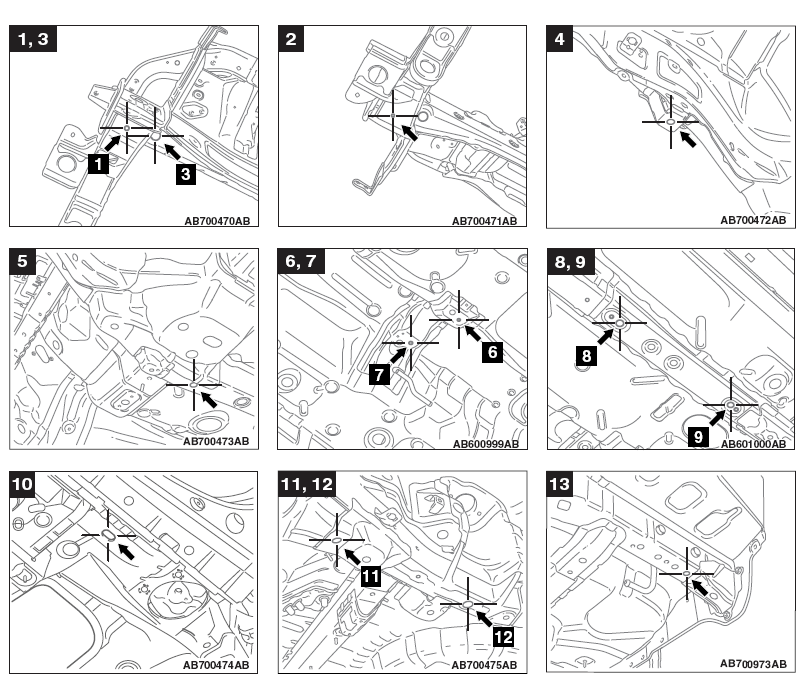

STANDARD MEASUREMENT POINT SPECIFICATION

No.	Standard measurement point	Hole shape	Size mm (in)
1	Center of front end crossmember lower water draining hole (left side)	Round	8 (0.31)
2	Center of front end crossmember lower water draining hole (right side)	Round	8 (0.31)
3*	Center of front sidemember inner positioning hole	Round	25 (0.98)
4*	Center of front axle crossmember mounting hole (front)	Round	15.5 (0.61)
5*	Center of front sidemember rear water draining hole	Round	16 (0.63)
6	Center of propeller shaft mounting hole (left side)	Round	11 (0.43)
7	Center of propeller shaft mounting hole (right side)	Round	11 (0.43)
8*	Center of front floor sidemember positioning hole (front)	Round	16 (0.63)
9*	Center of front floor sidemember positioning hole (rear)	Round	16 (0.63)
10*	Center of rear floor sidemember lower positioning hole (front)	Oblong	33.9x18 (1.335x0.71)
11*	Center of rear suspension bracket front water draining hole	Round	16 (0.63)
12*	Center of rear floor sidemember lower positioning hole (rear)	Round	25 (0.98)
13*	Center of rear floor sidemember extension water draining hole (left side), Center of rear shipping bracket mounting hole (right side)	Round	14 (0.55)

NOTE: The * mark indicates the mounting position for the frame centering gauge.

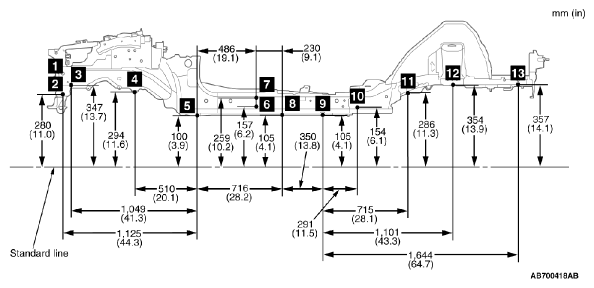

Fig 3: Under Body Dimensions And Measurement Points (Type A) (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The assumed standard line is established 100 mm (3.9in) below the measurement point No. 5.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
