Headlight Relay Connector End View (High)

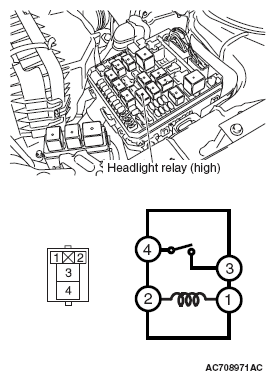

Fig 1: Headlight Relay Connector End View (High)
G05396842Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
