Registration Flow Chart

WARNING: This page is about a different variant/trim than selected.

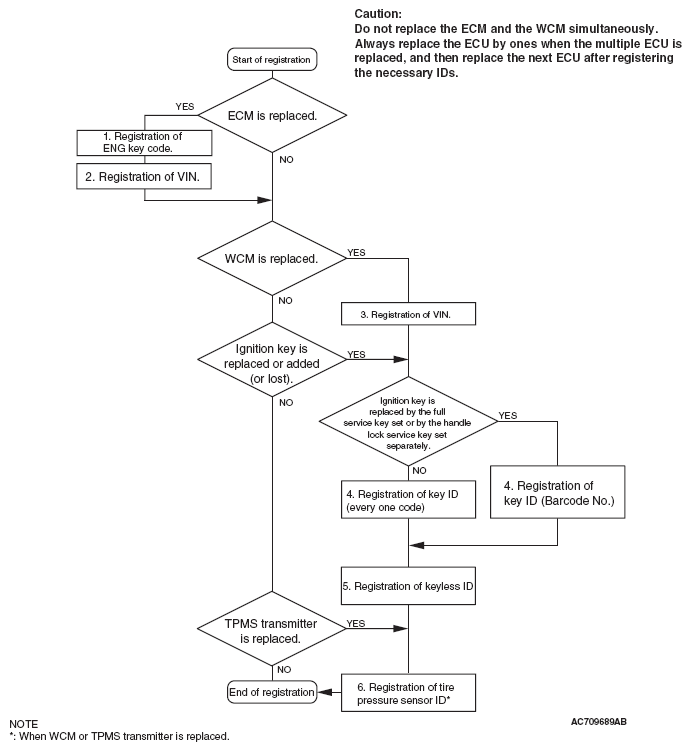

Fig 1: Registration Flow Chart
G05905340Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
