Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:

When WCM has been replaced, all key ID codes should be registered, referring to the ID CODE REGISTRATION NECESSITY JUDGMENT TABLE  .

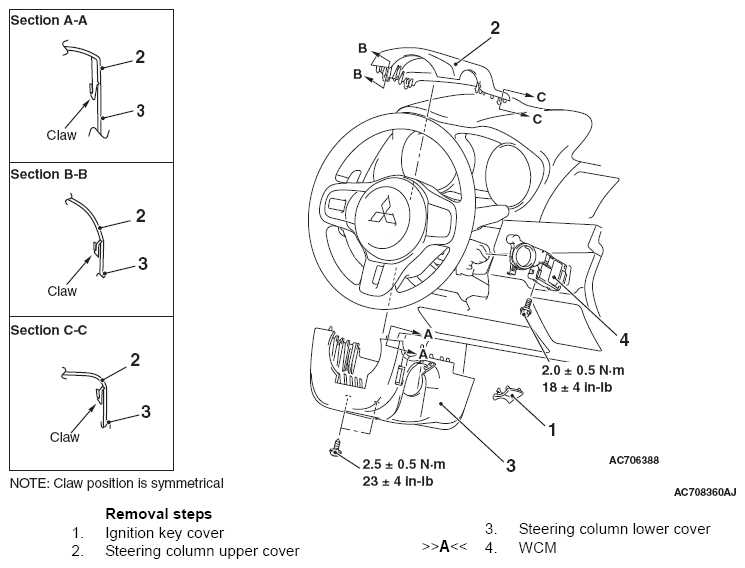

Fig 1: Ignition Key Cover And Steering Column Upper Cover With Torque Specifications
G06675846Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
