>> B << TPMS Transmitter/Nut Installation

CAUTION: Do not attempt to install the TPMS transmitter without depressing the portion indicated by the arrow.
  1. Install the TPMS transmitter into the valve while depressing the portion indicated by the arrow.

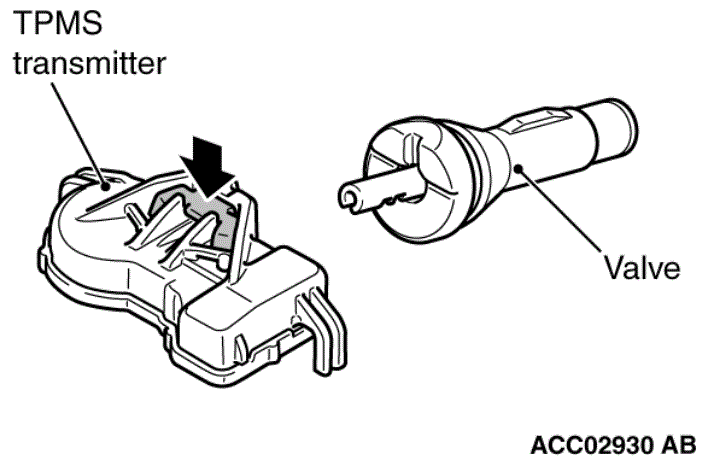

    Fig 1: Identifying Arrow
    G00534329Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
