Removal And Installation: Notes
WARNING:
Certain components of this vehicles, such as TPMS transmitters, may contain perchlorate materials. Special handling may apply. For additional information, see www.dtsc.ca.gov/hazardouswaste/perchlorate.
CAUTION:
- Ensure valve cap is always in place except when adjusting tire pressure.
- If the valve core and valve cap are replaced, use a genuine replacement part. The valve core is similar to a conventional one, but uses nickel plating to avoid corrosion.
- Replace the seal washer with a new one when the tire is replaced.
- Do not drop the TPMS transmitter from height greater than 1 meter (3.3 feet).
- Do not expose the TPMS transmitter to extraneous magnetic fields.
- TPMS transmitter should not be stored at temperatures above 80°C (176°F).
- TPMS transmitter should not be exposed to temperatures above 100°C (212°F).
- If the TPMS transmitter is replaced, execute "Tire Pressure Sensor ID Registration" on scan tool MB991958 "Special Function."
- Be careful not to damage the TPMS transmitter.
Pre-removal Operation
- Wheel and Tire Removal
Post-installation Operation
- Wheel and Tire Installation
- Tire Pressure Sensor ID Registration If a new TPMS transmitter is installed
- After the tire pressure sensor ID registration, check that the TPMS warning light does not illuminate or flash

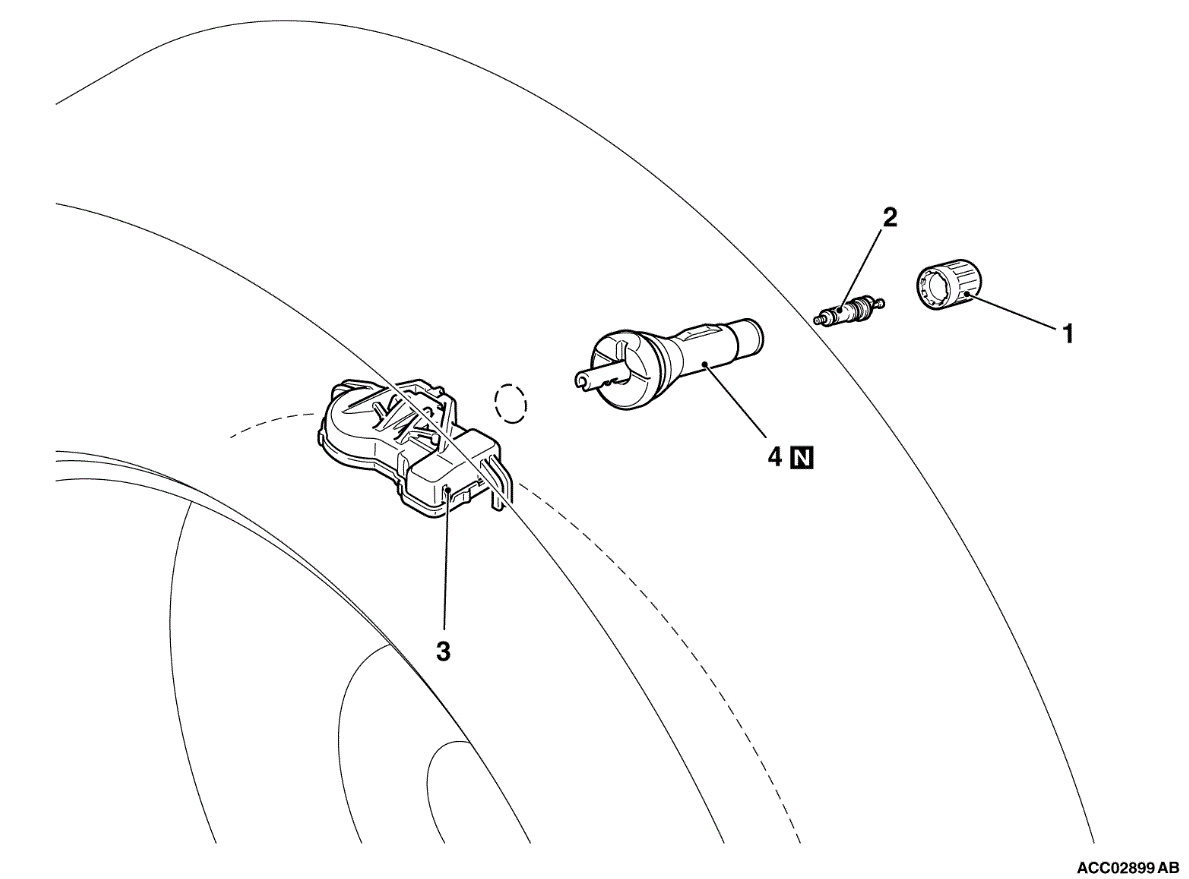

- Cap
- Valve Core
- TPMS Transmitter
- Valve <In Case Of Removing/Installing The Valve>
