Disassembly And Assembly: Notes

WARNING: Coin-type lithium battery may contain perchlorate materials. Special handling may apply. For additional information, see www.dtsc.ca.gov/hazardouswaste/perchlorate.

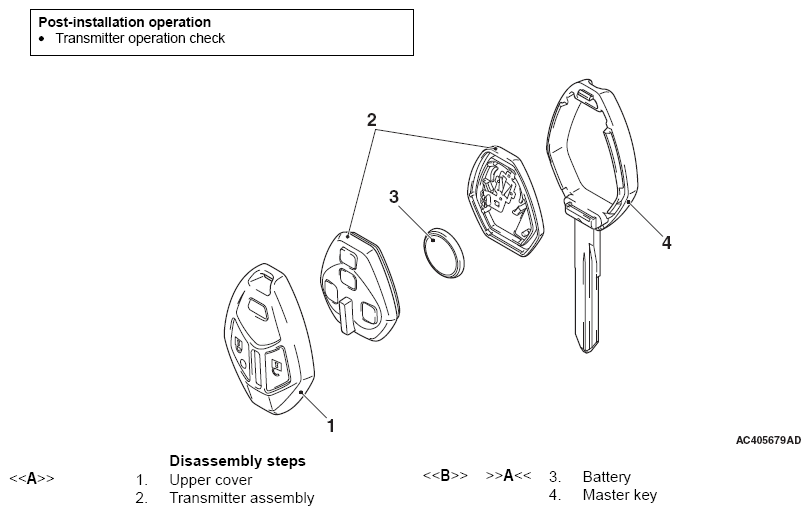

Fig 1: Identifying Transmitter Assembly/Disassembly Components
G07048867Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
