<< C >> Stator/Regulator Assembly Removal

  1. Remove 6 installation screws of the stator lead wire, and then remove the stator.
  2. Remove 4 installation screws of the regulator to remove the regulator assembly.

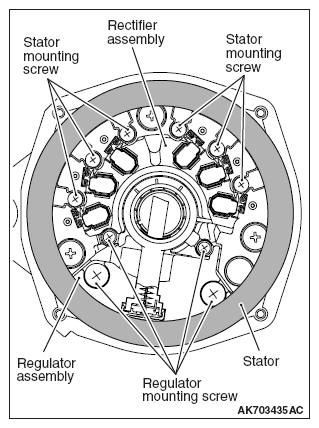

    Fig 1: Identifying Stator/Regulator Assembly
    G09640993Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
