WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

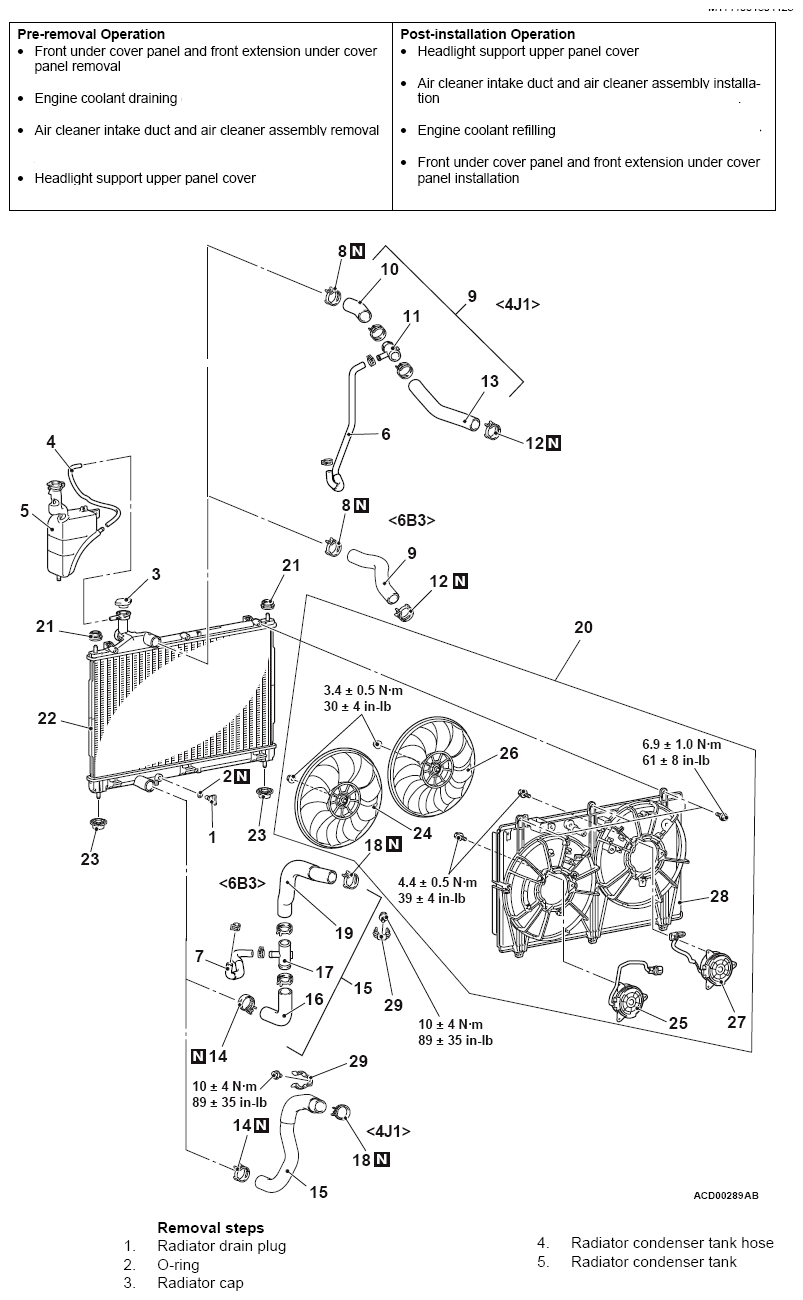

Fig 1: Removing/Installing Radiator With Torque Specification (1 Of 2)

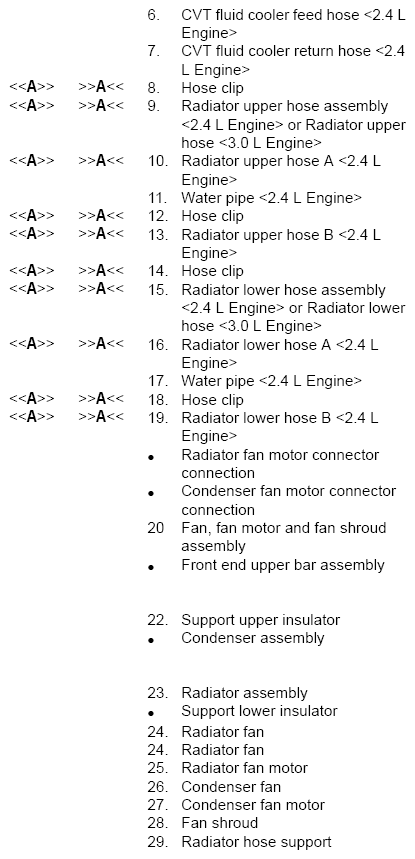

Fig 2: Removing/Installing Radiator With Torque Specification (2 Of 2)
