Window Glass Installation

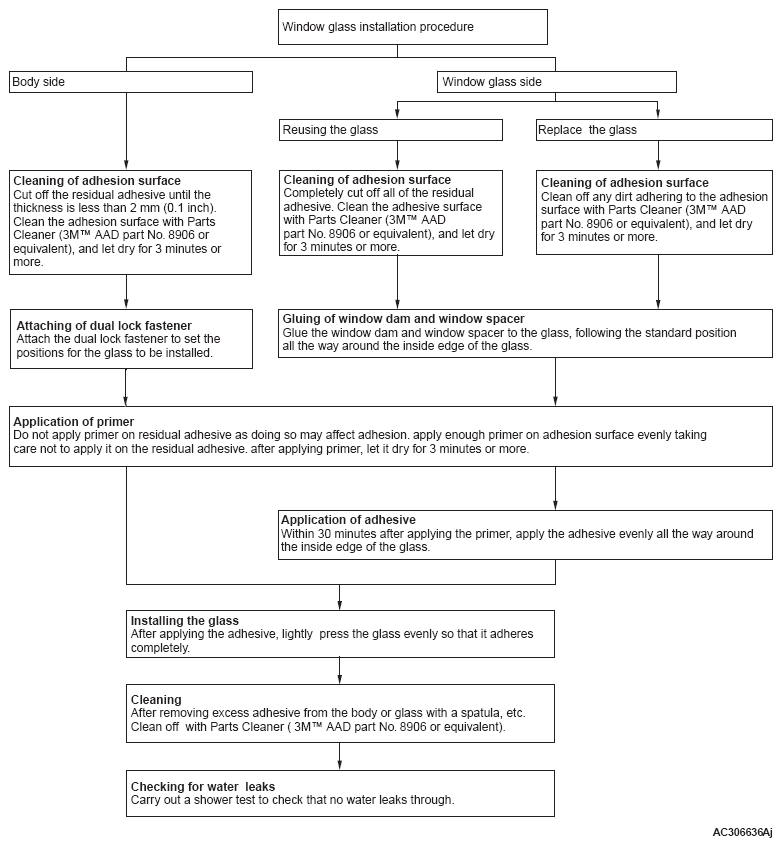

Fig 1: Window Glass Installation Procedure Chart
G09666097Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
