System Diagram

2.4L Engine

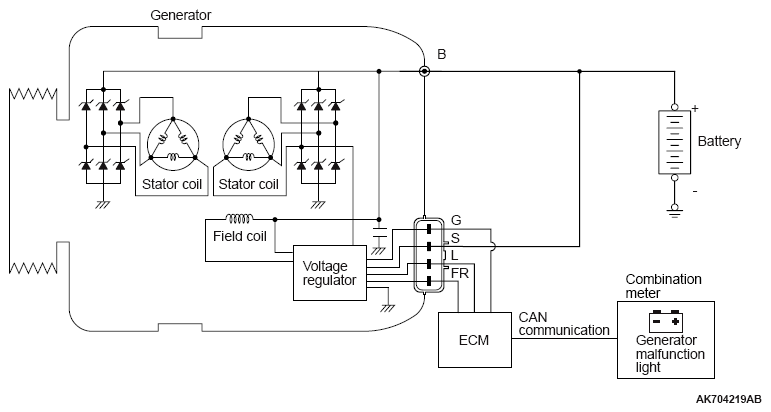

Fig 1: Charging System Diagram - 2.4L Engine
G09664690Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

3.0L Engine

Fig 2: Charging System Diagram - 3.0L Engine
G09664691Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
