Measurement Method

Connect the oscilloscope special patterns pick-up to the generator "B" terminal.

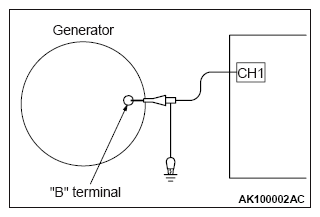

Fig 1: Connecting Oscilloscope To Generator
G09664698Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
