Disassembly And Assembly - AWD: Notes

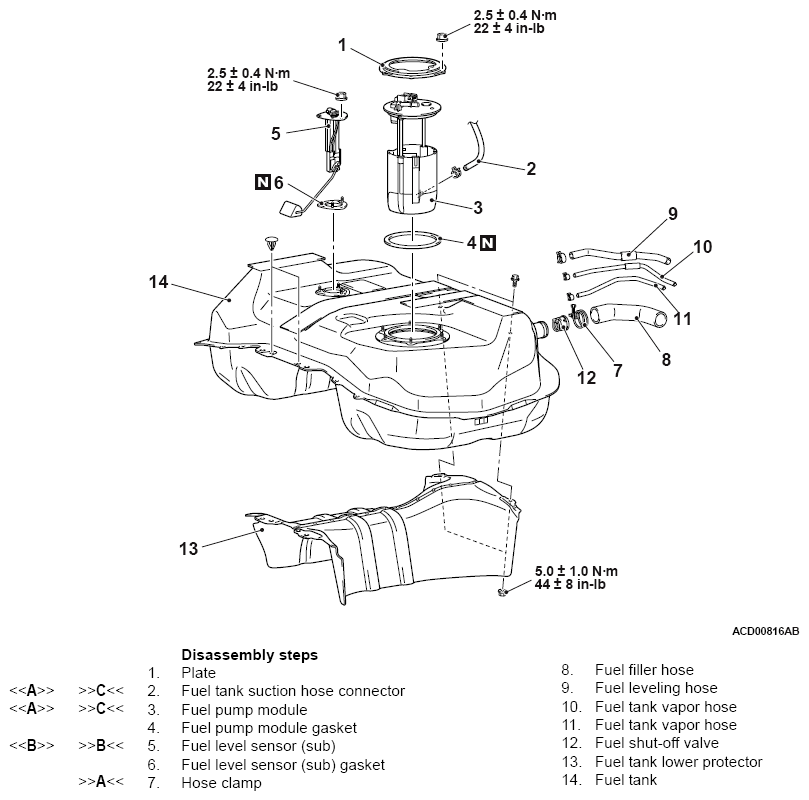

Fig 1: Disassembling/Assembling Fuel Tank Assembly With Torque Specification - AWD
G09664588Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
