Inspection Terminal

Name Symbol
Data link connector B
Spare connector (for rear display) C
Spare connector (for switch box) D
Spare connector (for trailer harness) A

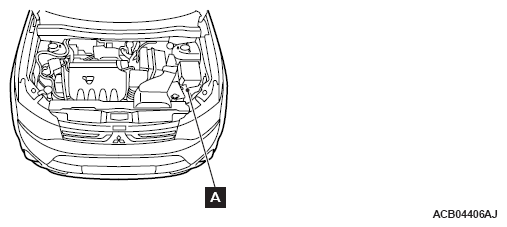

Fig 1: Locating Spare Connectors (1 Of 2)
G09621378Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

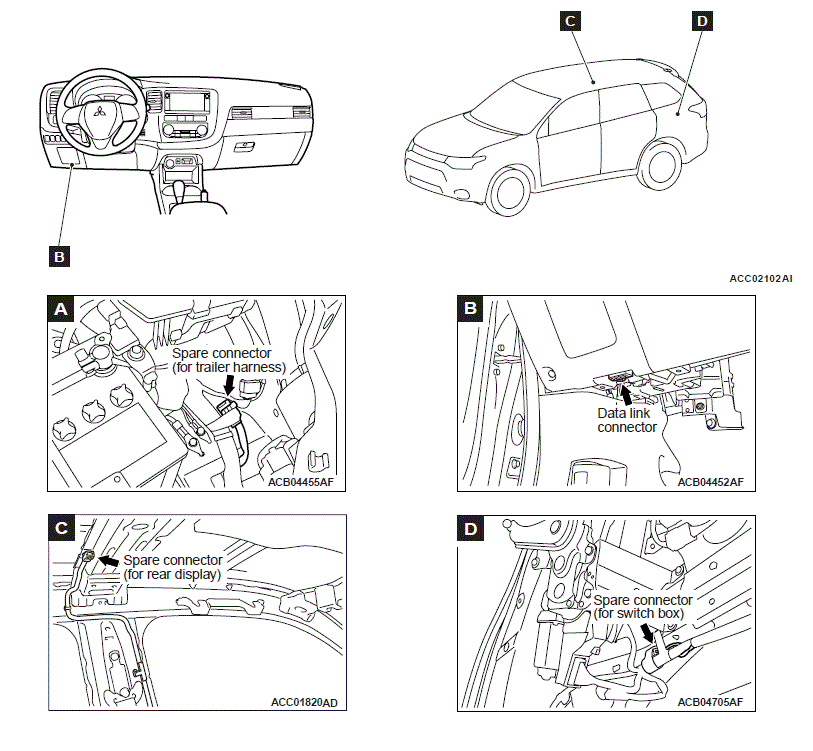

Fig 2: Locating Spare Connectors (2 Of 2)
G00531884Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
