Disassembly And Reassembly: Notes

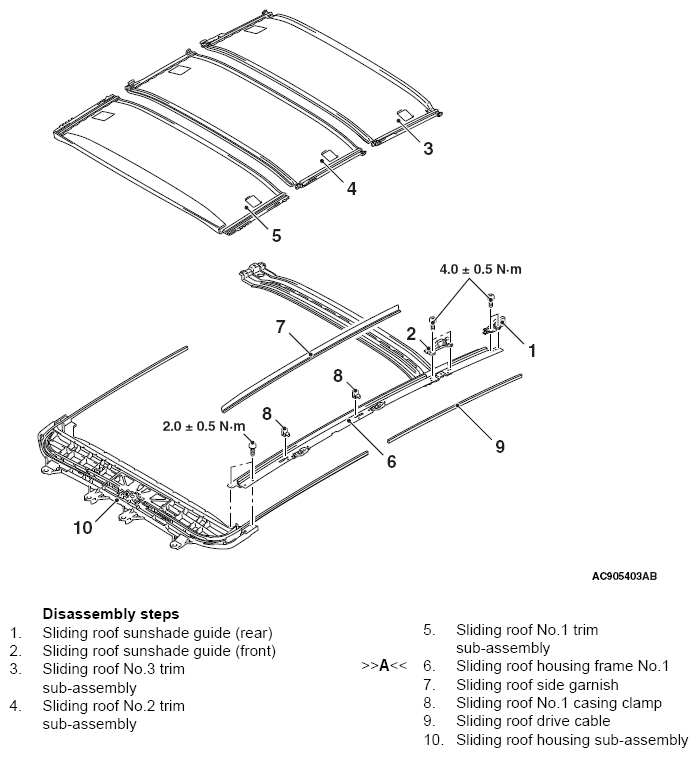

Fig 1: Disassembling View Of Sunroof
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
