< Fuel Pump Module >

NOTE: For installation and removal, refer to FUEL PUMP MODULE REPLACEMENT  in On-vehicle Service

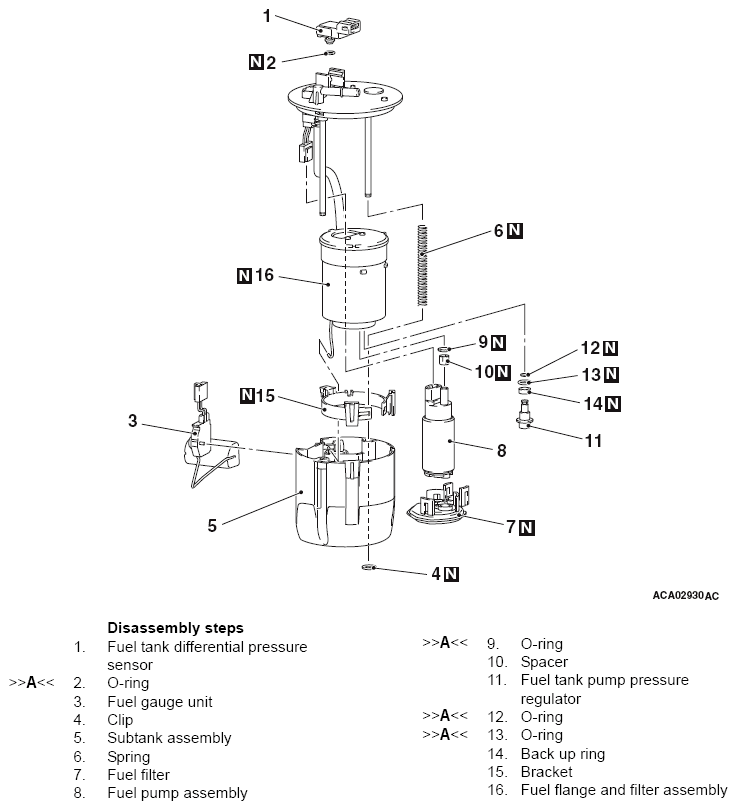

Fig 1: Disassembling/Assembling Fuel Pump Module
G09669232Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
