Code Chart

No. Item Example Content
1 MODEL GA2W XTMHZL4M GA2W: Vehicle model
XTMHZL4M: Model series
2 ENGINE 4B11 Engine model
3 EXT X42A Exterior code
4 TRANS AXLE W1CJA 6466 W1CJA: Transmission model 6466: Rear differential final gear ratio (a decimal point is omitted)
5 COLOR X42 Body color code
6 INT 40X Interior code
7 OPT Q63 Equipment code

For monotone color vehicles, the body color code shall be indicated.

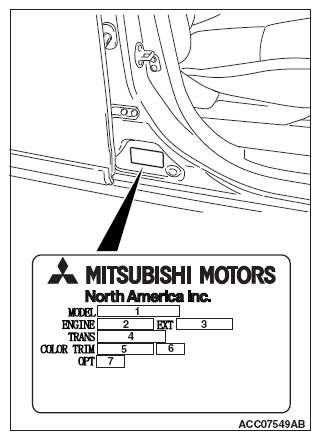

Fig 1: Identifying Vehicle Information Code Label
G09667871
