Removal And Installation: Notes

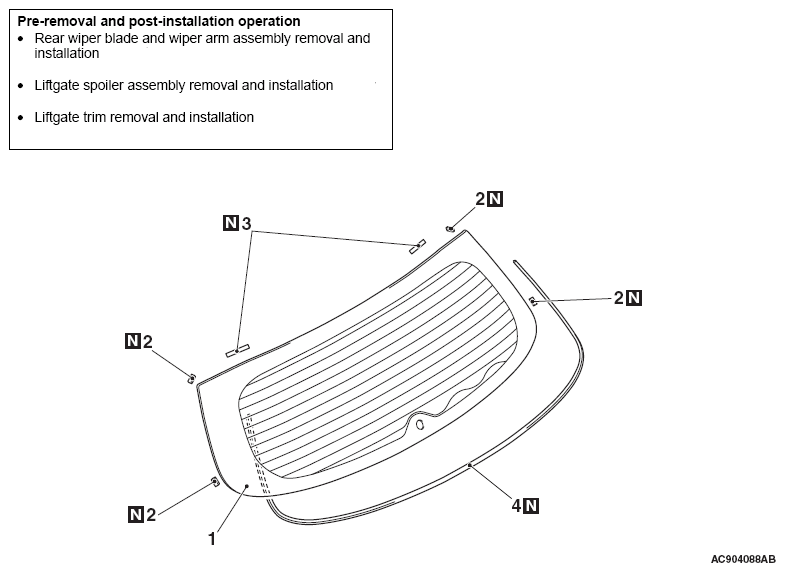

Fig 1: Removing/Installing Liftgate Window Glass Adhesive Tape Applying Area
G09670620Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

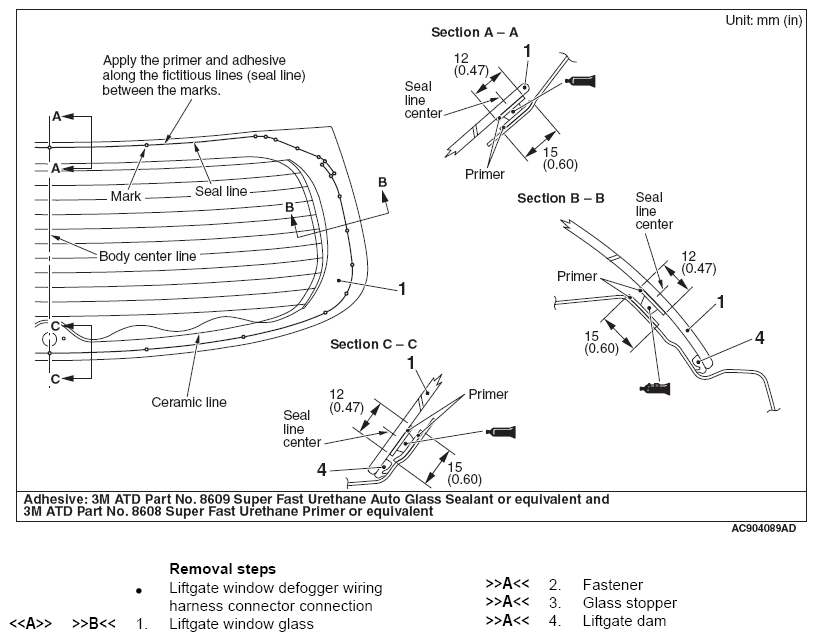

Fig 2: Identifying Liftgate Window Glass Adhesive Tape Applying Area
G09670621Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
